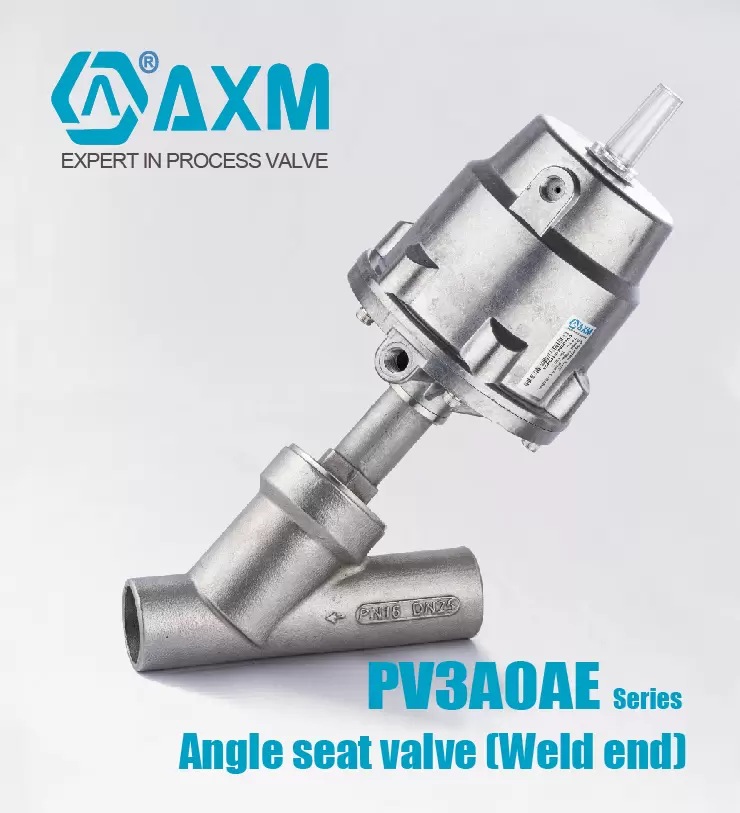

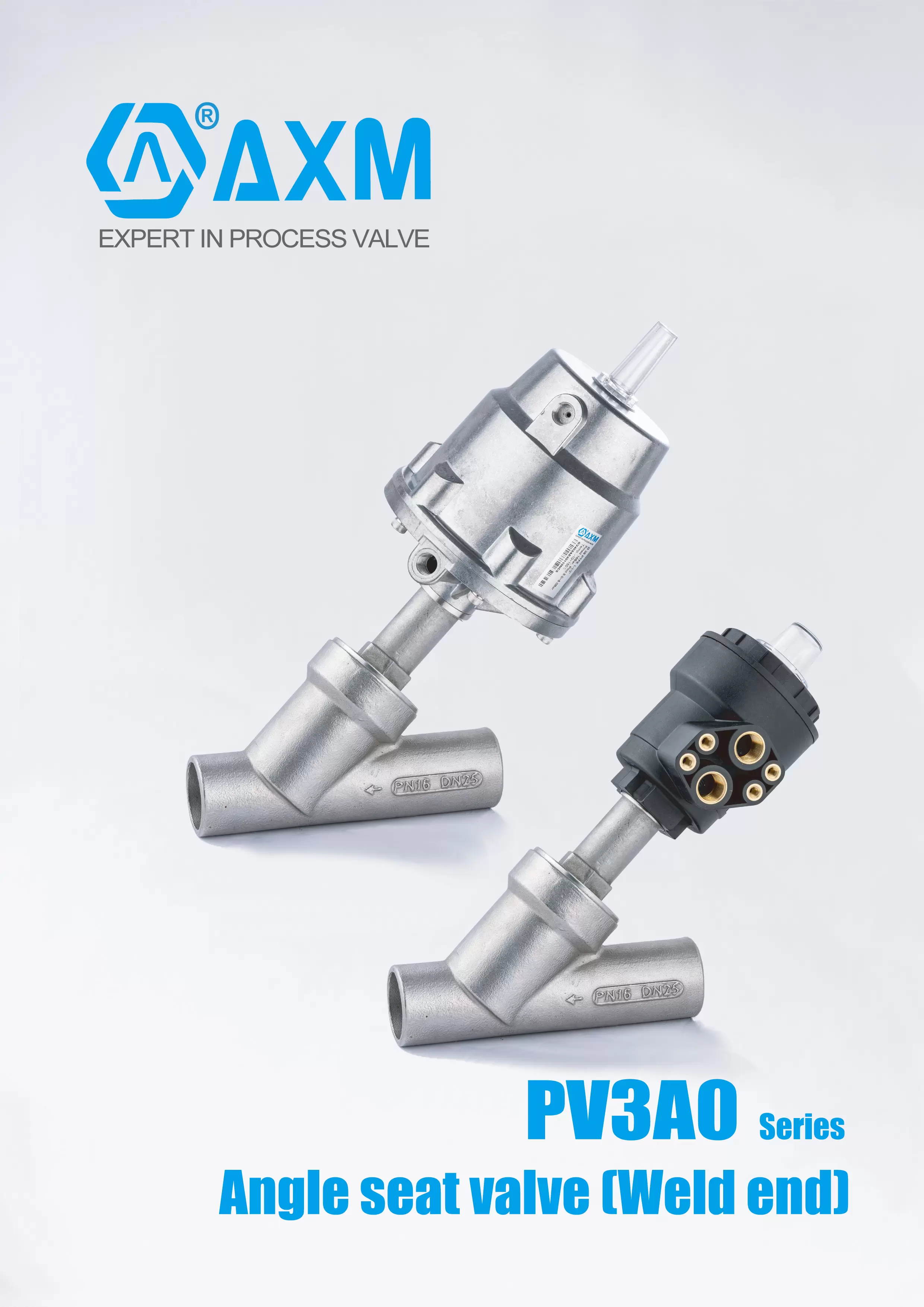

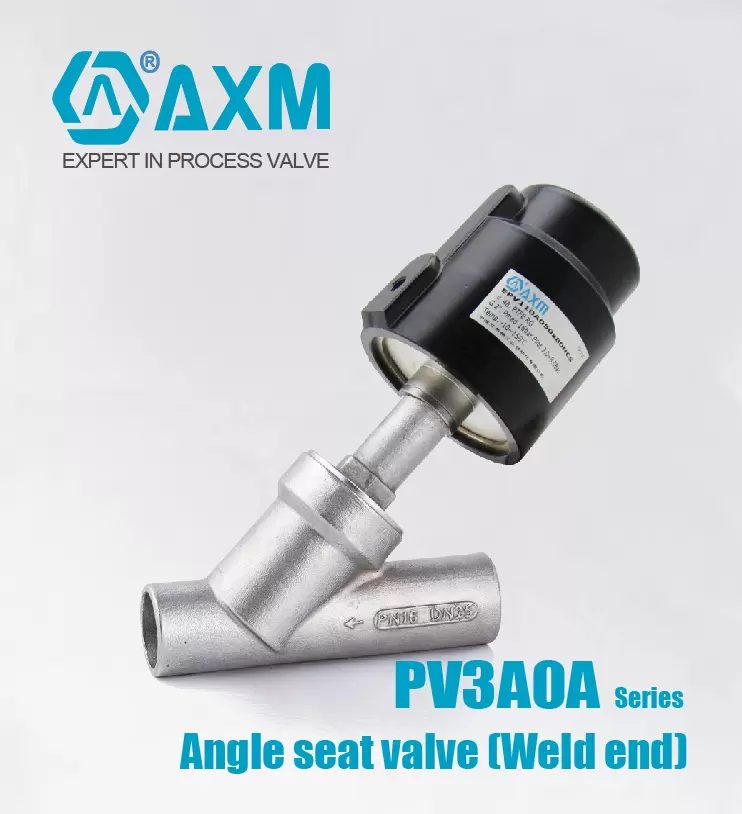

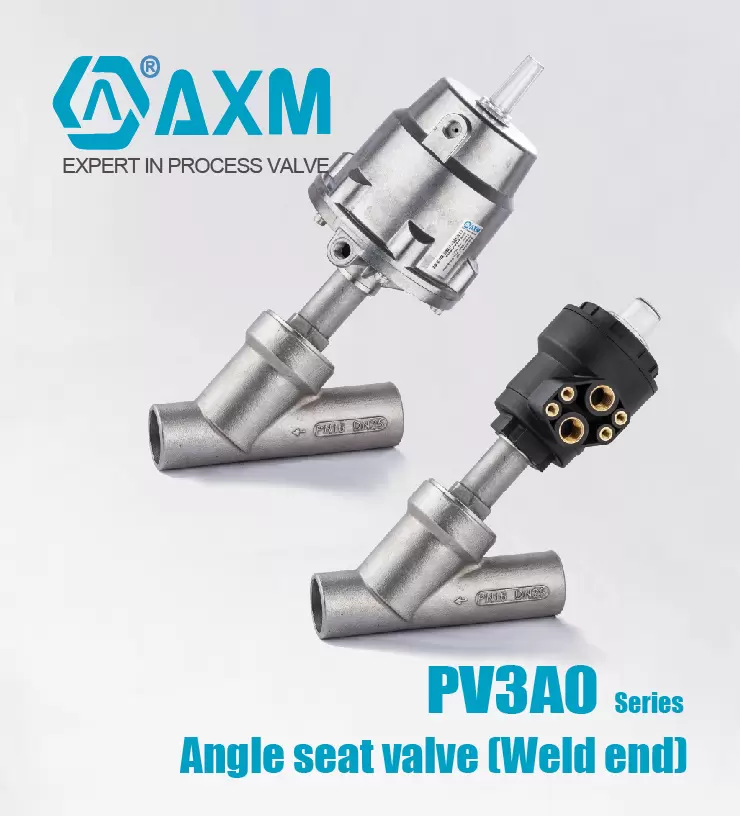

General Characteristics of Pneumatically Actuated Angle Seat Valves:

1. Y-type body structure ensures high flow capacity. 2. Features a water hammer-resistant design. 3. The standard packing design is suitable for vacuum conditions ranging from 10 to 2 mbar. 4. The valve actuator is capable of 360° rotation; to ensure maximum valve performance is achieved at the lowest possible control pressure, a range of actuator sizes is available (32, 40, 50, 63, 90, and 110 mm diameters). 5. The self-adjusting, maintenance-free packing design ensures superior sealing performance. 6. A variety of body materials are available: AISI 304, AISI 316, AISI 316L, and Tin Bronze. 7. Multiple connection types are available: internal thread, external thread, butt-weld, socket-weld, flanged, quick-connect, and union-type. 8. Valve body sizes range from 1/4" to 4", and the valve structure is available in various configurations: double-acting, single-acting normally closed (reverse flow), single-acting normally closed (forward flow), single-acting normally open (forward flow), and single-acting normally open (reverse flow). 9. By combining various operational requirements with options for fluid flow—either entering from above or below the valve seat—it becomes possible to create a wide range of integrated automated valve control solutions. 10. Based on the specific valve configuration and the pressure within the pipeline, the required control pressure for the valve can be customized, thereby determining the specific ordering code for the unit.
