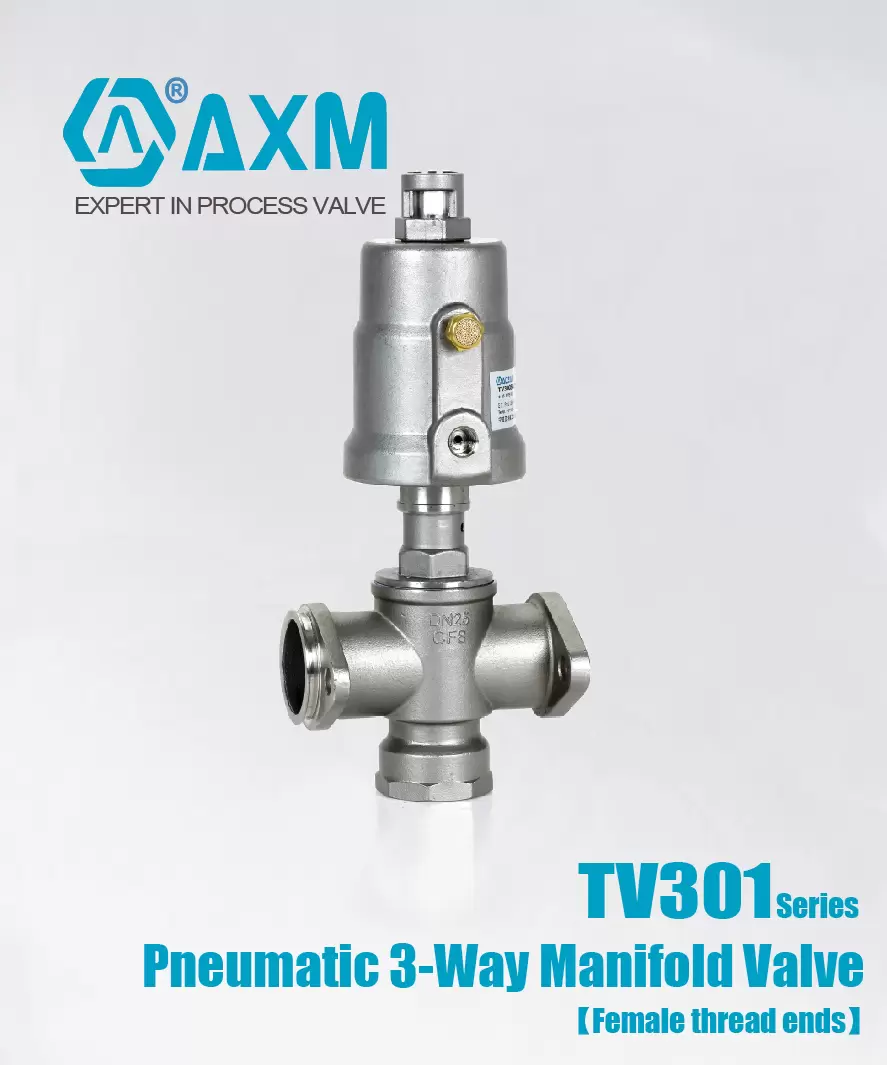

Pneumatic 3-way Seat Valve

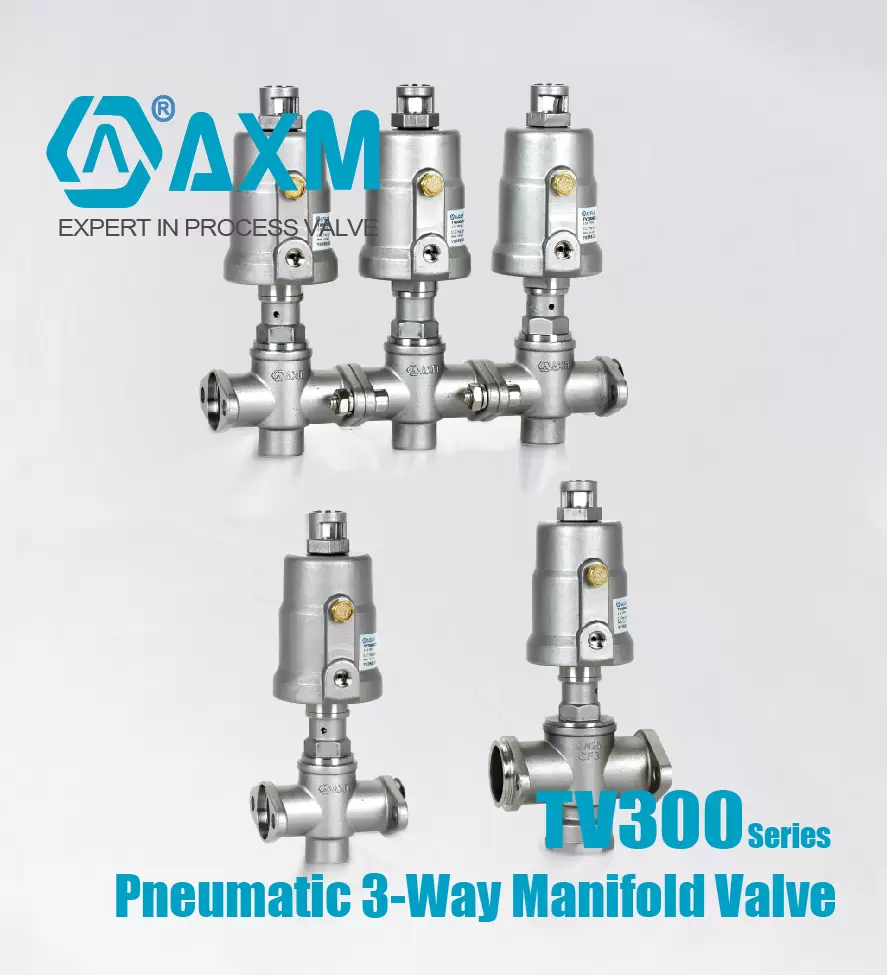

TV300 Series 3-way Pneumatic Manifold valve
Home > Products > Pneumatic 3-way Seat Valve > TV300 Series 3-way Pneumatic Manifold valve > TV300 Series Pneumatic 3-way Manifold Valve
Application Field
Machinery and Automation Equipment;
Filling Industry;
Dyeing, Printing, and Purification Technology;
Beverage Processing Industry;
Polystyrene Foaming and Packaging Equipment;
Bio-fermentation Equipment;
Product Introduction
Series TV300 3-way seat valve consists of a pneumatically operated actuator and a 3-way body;

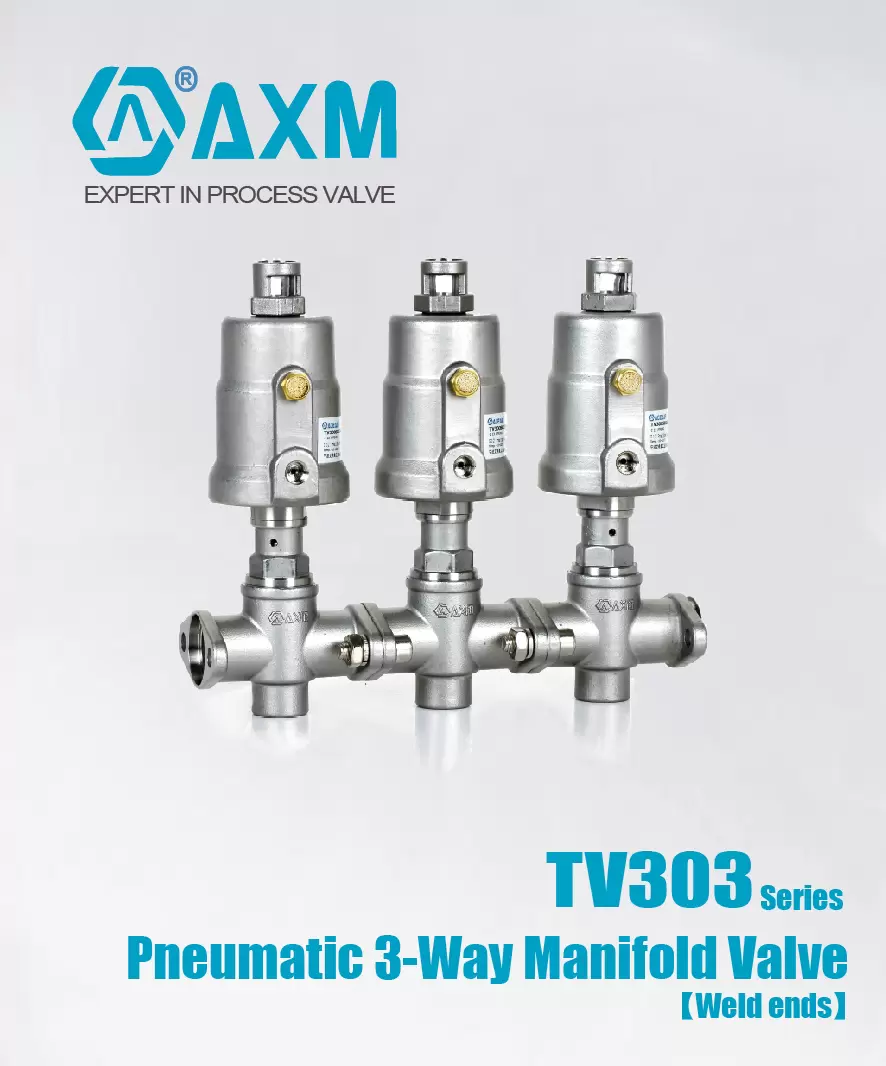

The design structure of the compact valve body with connected small flange, through the fitting parts, the 3-way valve body can form the valve group, which can not only to ensure the overall unity of the equipment system installation, but also has economic benefits;
Valve body material: AISI 304,AISI 316 and AISI316L;
Wide range of piston-type operators ( 40 - 50 mm dia.) rotatable through 360°;
Interchangeing of pressure and service ports enables different fluidic circuit functions, such as mixing or distributing mediums;
3-way valve function is realized through the pilot valve controlis;
Threaded port and weld ends connection is optional.

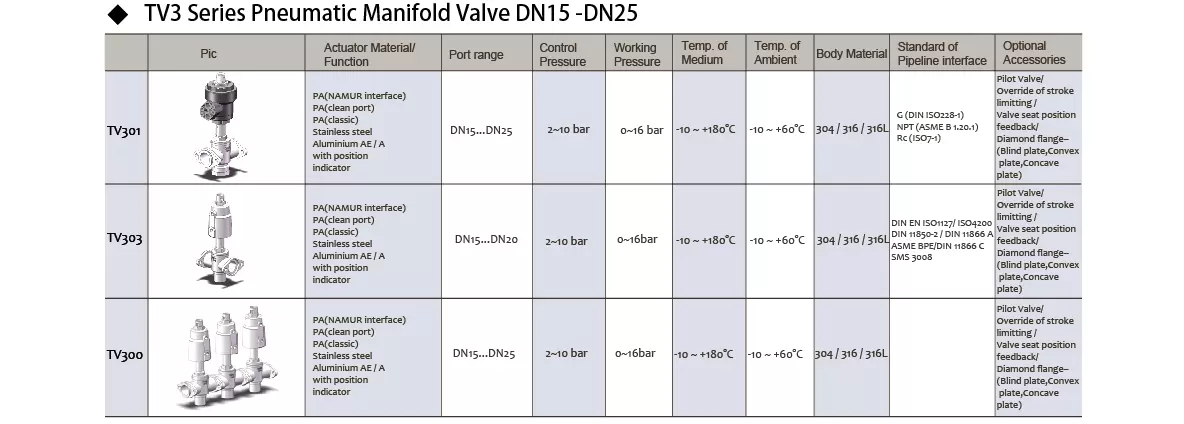

Technical Specifications
Product Features
The design structure of the compact valve body with connected small flange, through the fitting parts, the 3-way valve body can form the valve group, which can not only to ensure the overall unity of the equipment system installation, but also has economic benefits;
Valve body material: AISI 304,AISI 316 and AISI316L;
Wide range of piston-type operators ( 40 - 50 mm dia.) rotatable through 360°;
Interchangeing of pressure and service ports enables different fluidic circuit functions, such as mixing or distributing mediums;
3-way valve function is realized through the pilot valve controlis;
Threaded port and weld ends connection is optional.

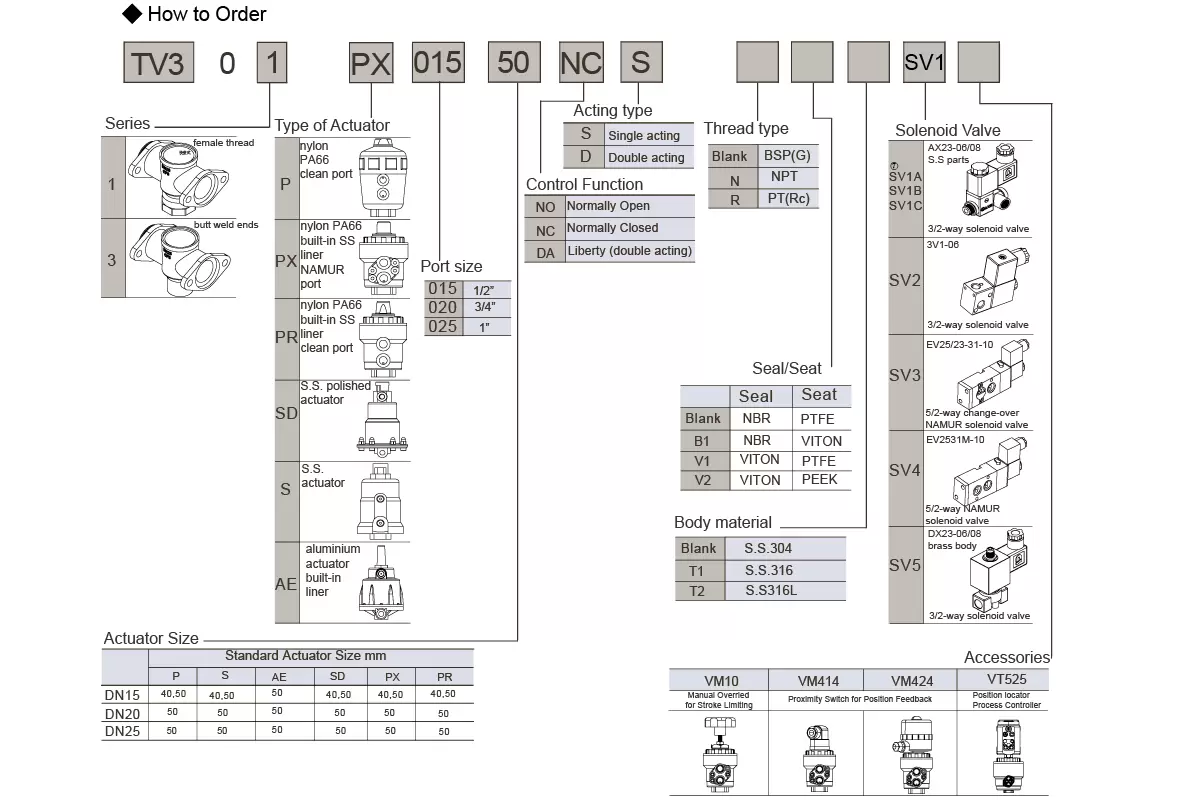

Options and Accessories
* Pilot Valve
* Regulating the cone;
* Manual Override for stroke Limiting;
*Proximity switch for position feedback
* Position locator & Process controller

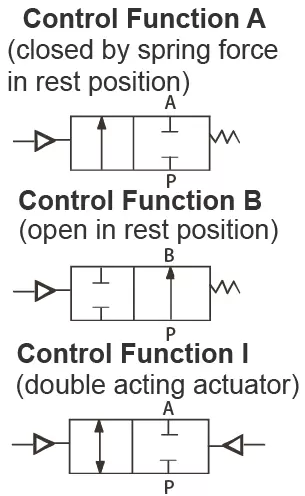

Symbol
-
