Pneumatic 3-way Seat Valve
TV100 series 3-way Pneumatic seat Valve
Home > Products > Pneumatic 3-way Seat Valve > TV100 series 3-way Pneumatic seat Valve > TV100 Series Pneumatic 3-way Seat Valve
Application Field
Machinery and Automation Equipment;
Filling Industry;
Dyeing, Printing, and Purification Technology;
Beverage Processing Industry;
Industrial Steam Sterilization and Separation Equipment;
Bio-fermentation Equipment;
Product Introduction

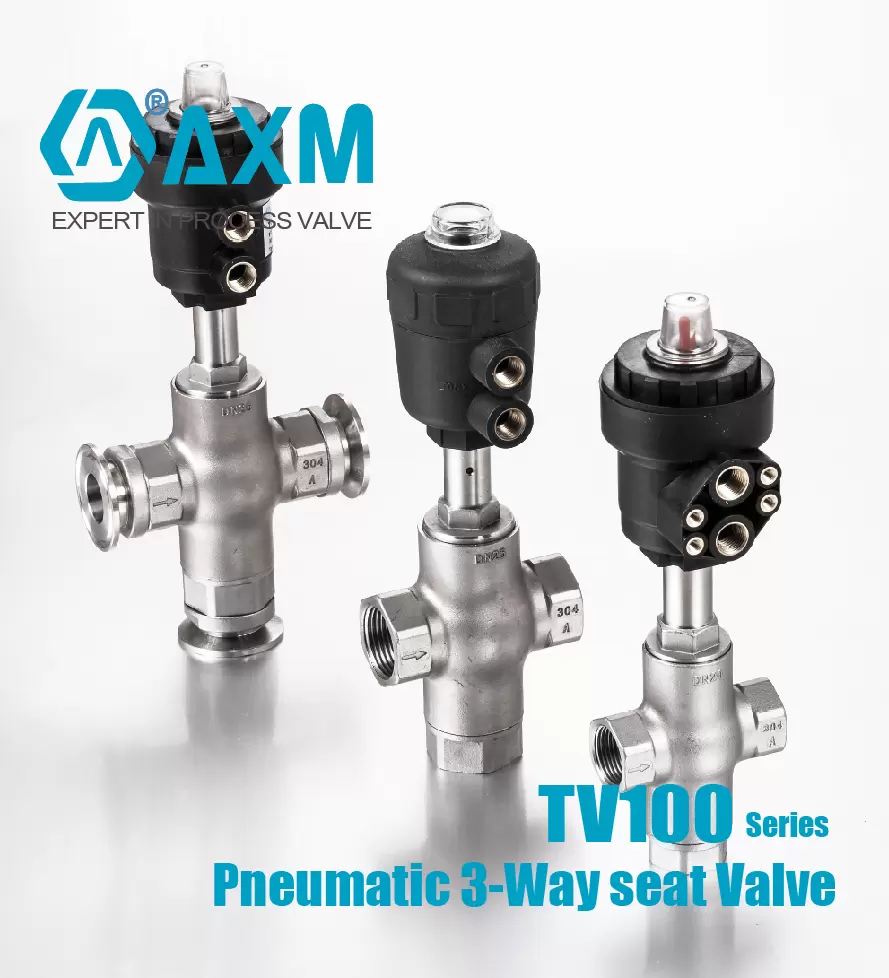

Series TV100 3-way seat valve consists of a pneumatically operated actuator and a 3-way body;
Compact valve body structure replaces two separate flow cutting valves;
Valve body material: AISI 304,AISI 316, AISI316L and Gunmetal;
Wide range of piston-type operators ( 40 - 50- 63 - 90 - 110 mm dia.) rotatable through 360°, for maximum performance at different minimum pilot pressures;
Interchangeing of pressure and service ports enables different fluidic circuit functions, such as mixing or distributing mediums;
3-way valve function is realized through the pilot valve controlis;

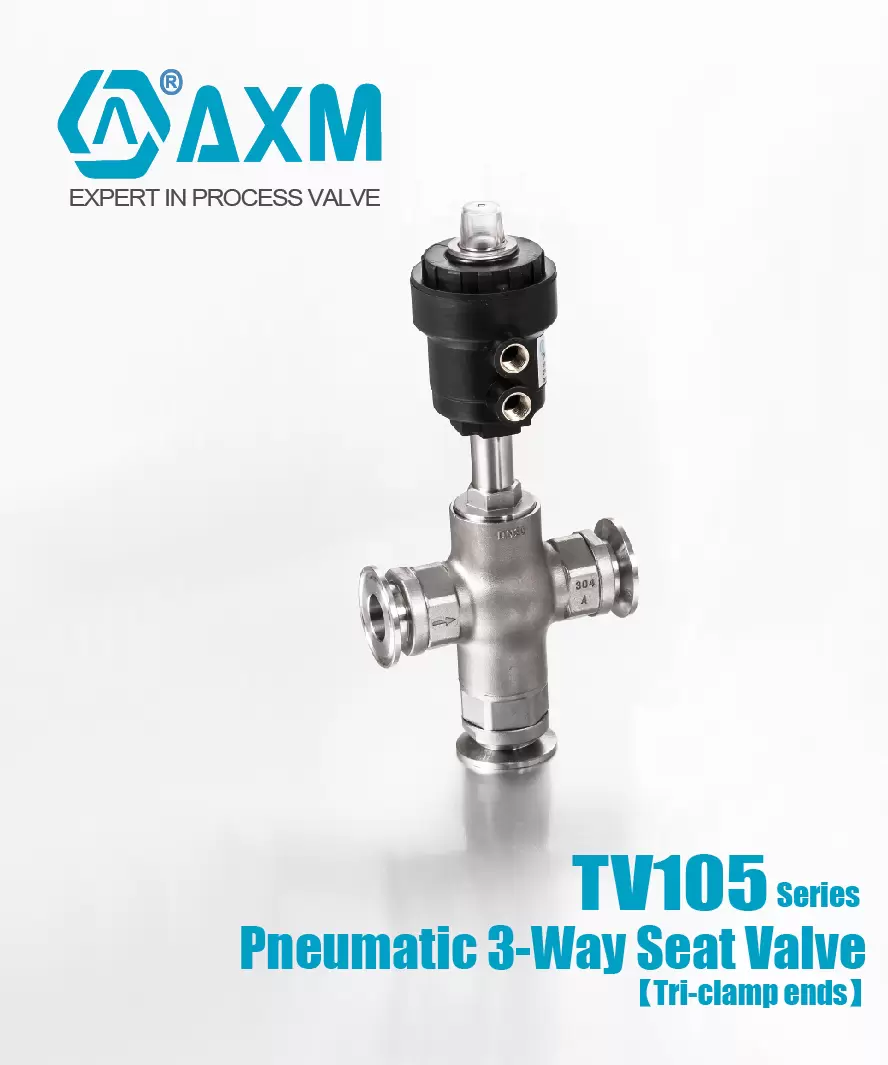

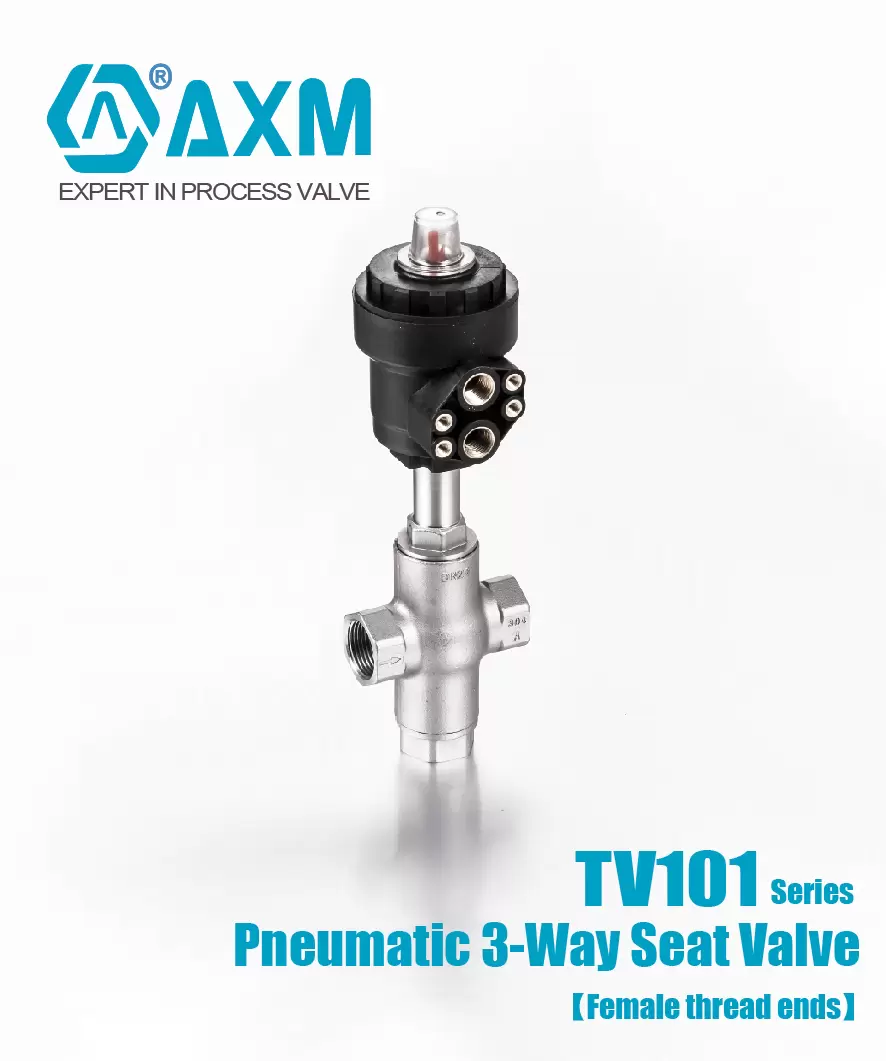

Threaded port and Tri-clamp connection is optional.

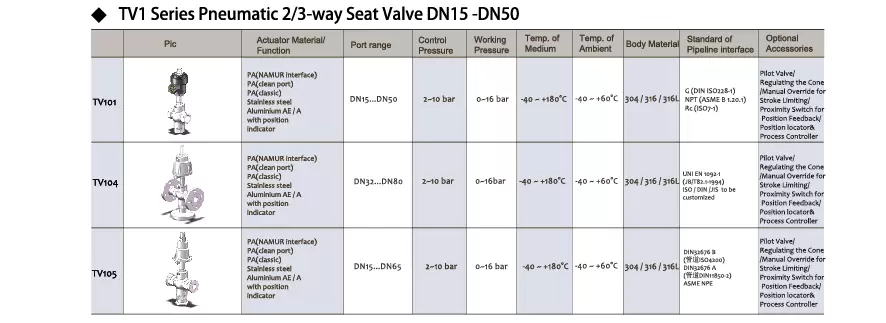

Technical Specifications
Product Features
Compact valve body structure replaces two separate flow cutting valves;
Valve body material: AISI 304,AISI 316, AISI316L and Gunmetal;
Wide range of piston-type operators ( 40 - 50- 63 - 90 - 110 mm dia.) rotatable through 360°, for maximum performance at different minimum pilot pressures;
Interchangeing of pressure and service ports enables different fluidic circuit functions, such as mixing or distributing mediums;
3-way valve function is realized through the pilot valve controlis;
Threaded port and Tri-clamp connection is optional.

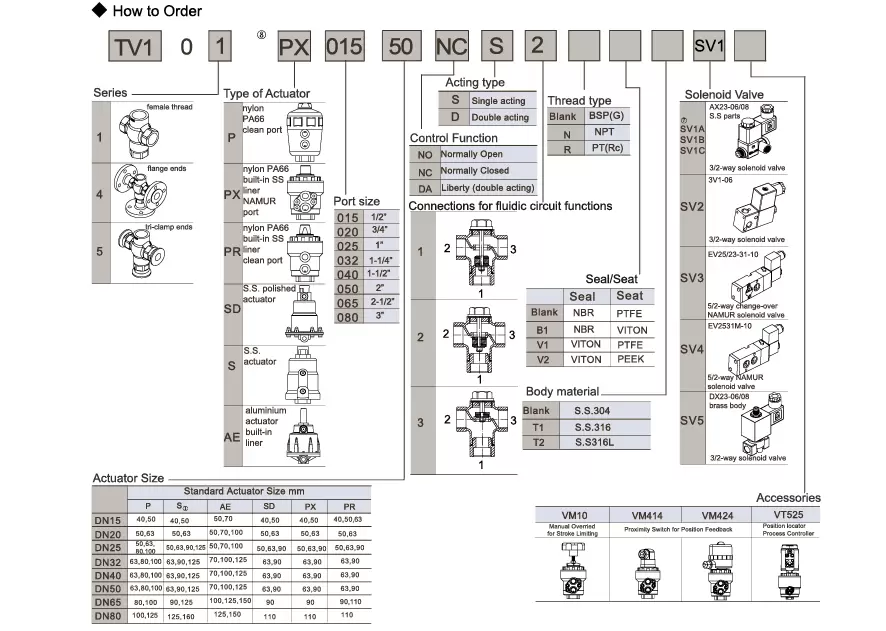

Options and Accessories
* Pilot Valve
* Regulating the cone;
* Manual Override for stroke Limiting;
*Proximity switch for position feedback
* Position locator & Process controller

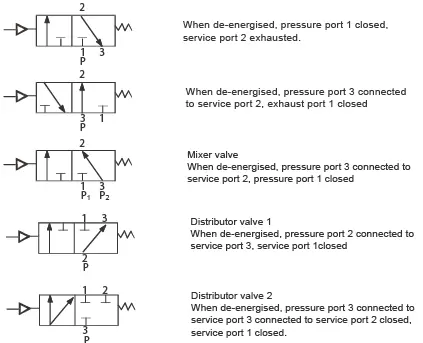

Symbol
-
