Application Field

Petrochemical Industry;

Machinery and Automation Equipment;

Filling Industry;

Dyeing, Printing, and Purification Technology;

Beverage Processing Industry;

Polystyrene Foaming and Packaging Equipment;

Heat Exchange System;

Industrial Steam Sterilization and Separation Equipment;

Bio-fermentation Equipment;

Industrial Gas Generation and Separation Equipment;

Request a Quote

Online Consultation

0086-574-88657748

Product Introduction

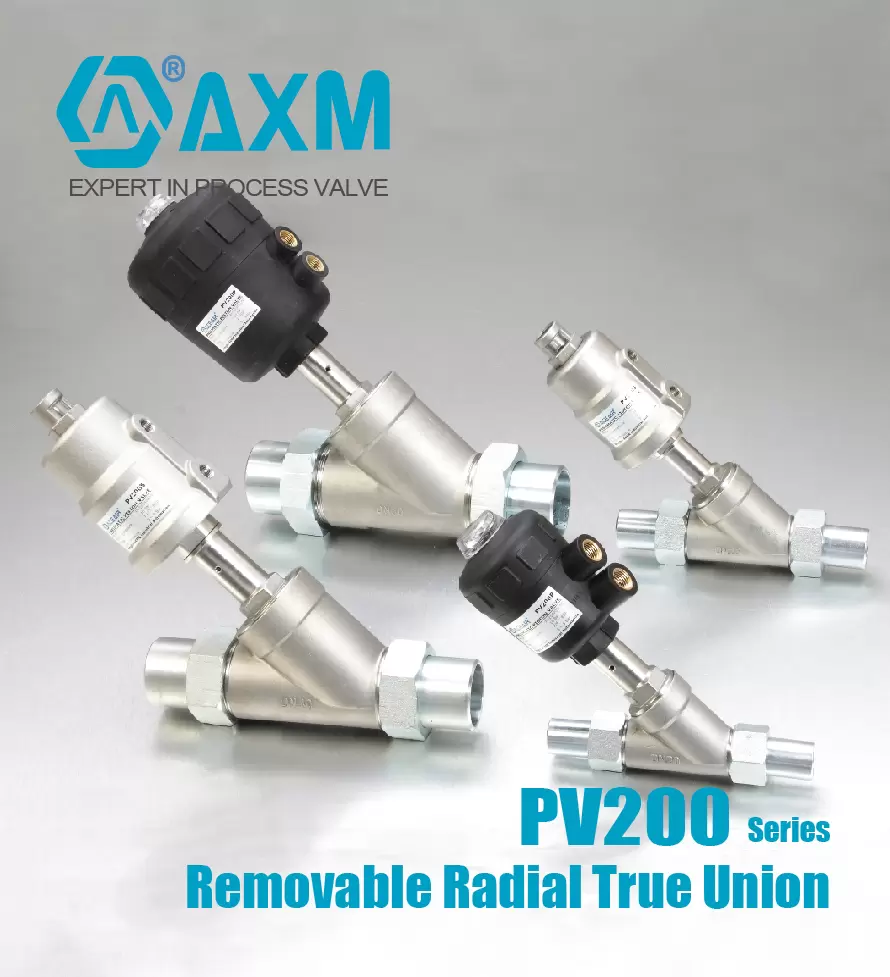

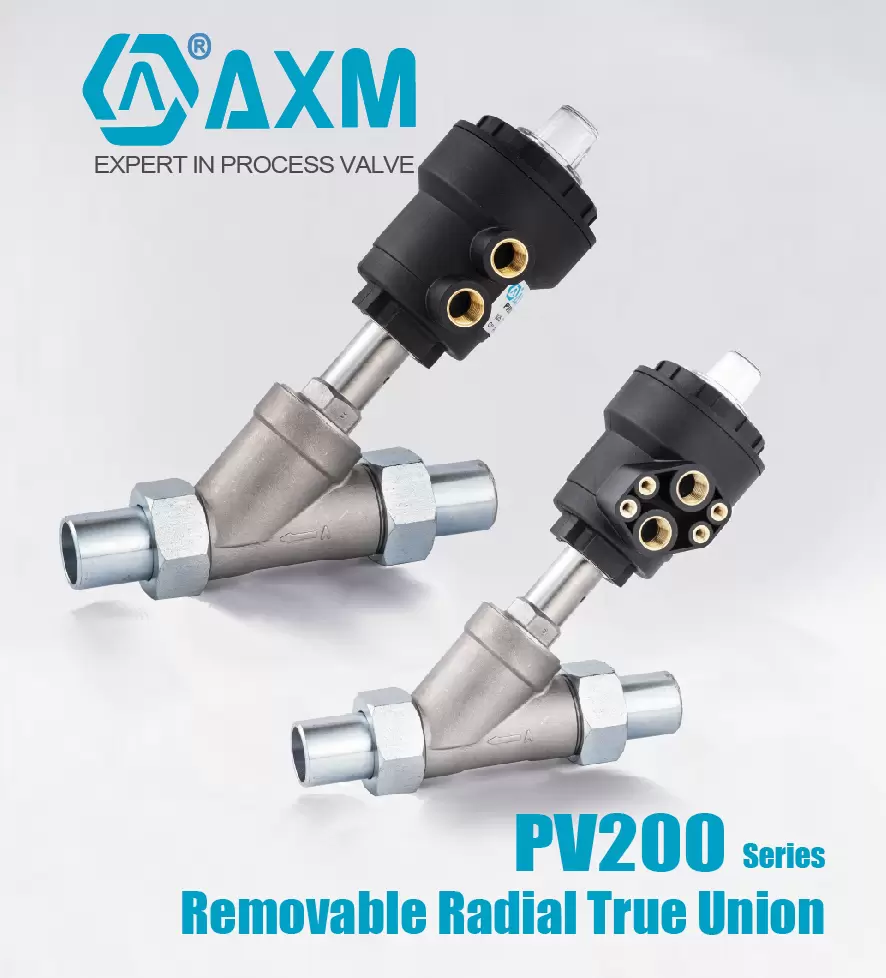

2/2-way Angle Seat Valve, Pneumatically Operated, for medium up to +180°C; Removable Radial True Union ends connection, DN15–65.

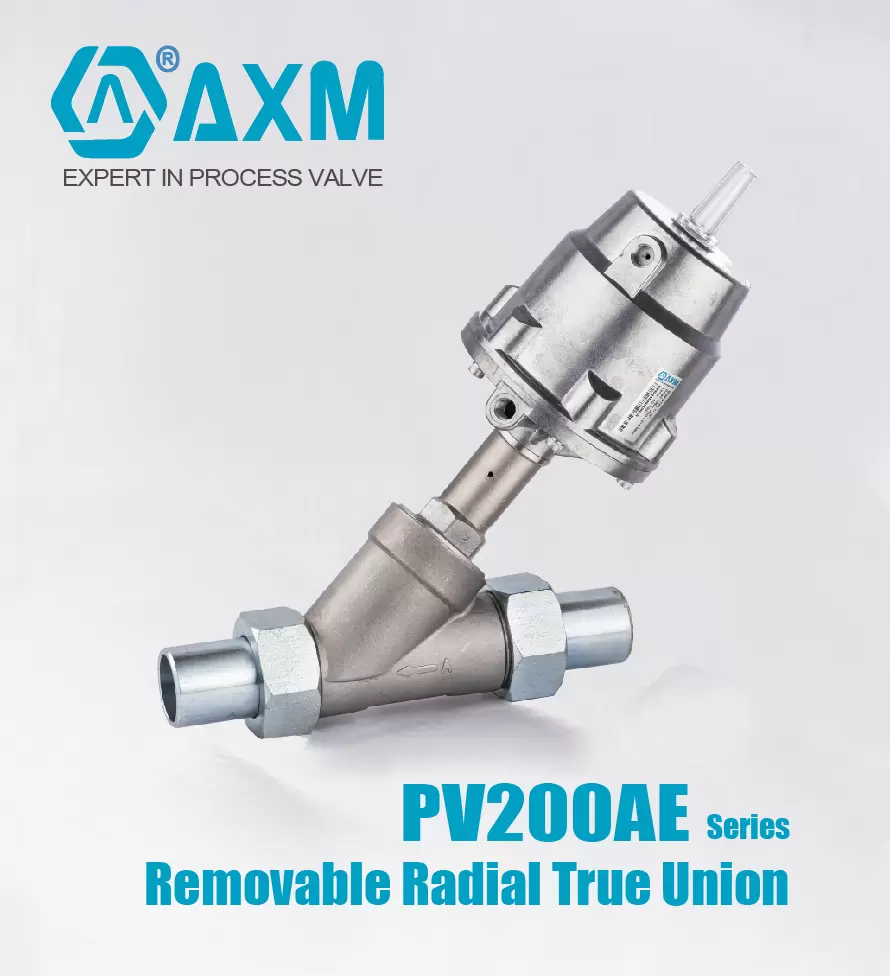

Series AE pneumatically operated 2/2-way angle seat valve, AE aluminum actuator, built-in plastic lining.

High flow rate, low flow resistance, and waterproof hammer structure;

Long life cycle;

NC. and NO. universal actuators with modular universal accessories program up to control heads;

Deliverable with flow direction below or above seat;

Simple conversion of the circuit function.

Technical Specifications

Connection Port Diameter	DN08…DN100
Valve Body Material	Precision Casting: 304, 316, 316L, Tin Bronze Rg5
Actuator Material	PA (PA + Glass Fiber) 304 Stainless Steel Aluminum Alloy
Sealing Material	PTFE(NBR,FKM,EPDM Based on requirements)
Circulating Medium	Air, water, alcohol, oil, chemical agents, hydraulic fluid, saline solutions, alkaline solutions, organic solvents, steam, etc.
Pressure	0–16 Bar (180°C Steam; Pressure: 0–10 Bar). For specific details, please refer to the product catalog; model selection should be based on the valve's nominal diameter.
Viscosity	Max.6oocst(mm²/s)
Packing Section (with Silicone Grease)	PTFE V-packing features spring-actuated compensation.
Medium Temperature	-10 to +180℃ (PTFE Valve Seat Seal)
Ambient Temperature	PA Nylon: -10°C to 60°C Stainless Steel: -10°C to 80°C Aluminum Alloy: -10°C to 80°C
Install	Installation may be performed as required; however, it is recommended that the actuator be positioned facing upwards. The valve may be installed in any position, provided that its operation remains unimpeded. For internally threaded models (C*), installation should be carried out in accordance with standards ISO 228/1 and ISO 7/1. Installation and maintenance instructions for the valve are included in the product packaging for each unit.
Control Medium	Neutral gas, air
Maximum Pilot Pressure	PA Nylon Actuator ‌Φ32...63 PA Nylon Actuator ‌Φ90...110 Stainless Steel Aluminum Alloy	10 bar 8 bar 10 bar 10 bar
Connection Type	Internal Thread External Thread Union Type Slip-on Weld Socket Weld Flange Type Quick-Connect Tin Bronze Internal Thread	DN08...DN80 DN15...DN65 DN15...DN65 DN15....DN65 DN15...DN65 DN15...DN100 DN15...DN65 DN13...DN65

Product Features

The actuator built-in plastic lining , making the inner bore smoother, facilitating piston movement, and ensure valve long life cycle;

The connection between the valve seat and the valve spindle adopts a floating design structure, which ensures the sealing of the valve disc and the valve port.；

AE series actuators are suitable for high pressure and high temperature operating environments.；

Wide range of piston-type operators ( 50- 70 - 100 - 125 - 150 mm dia.) rotatable through 360°, for maximum performance at different minimum pilot pressures ;

Anti-waterhammer design (fluid entry under the disc)
