Application Field

Petrochemical Industry;

Machinery and Automation Equipment;

Dyeing, Printing, and Purification Technology;

Polystyrene Foaming and Packaging Equipment;

Industrial Steam Sterilization and Separation Equipment;

Bio-fermentation Equipment;

Industrial Gas Generation and Separation Equipment;

Request a Quote

Online Consultation

Product Introduction

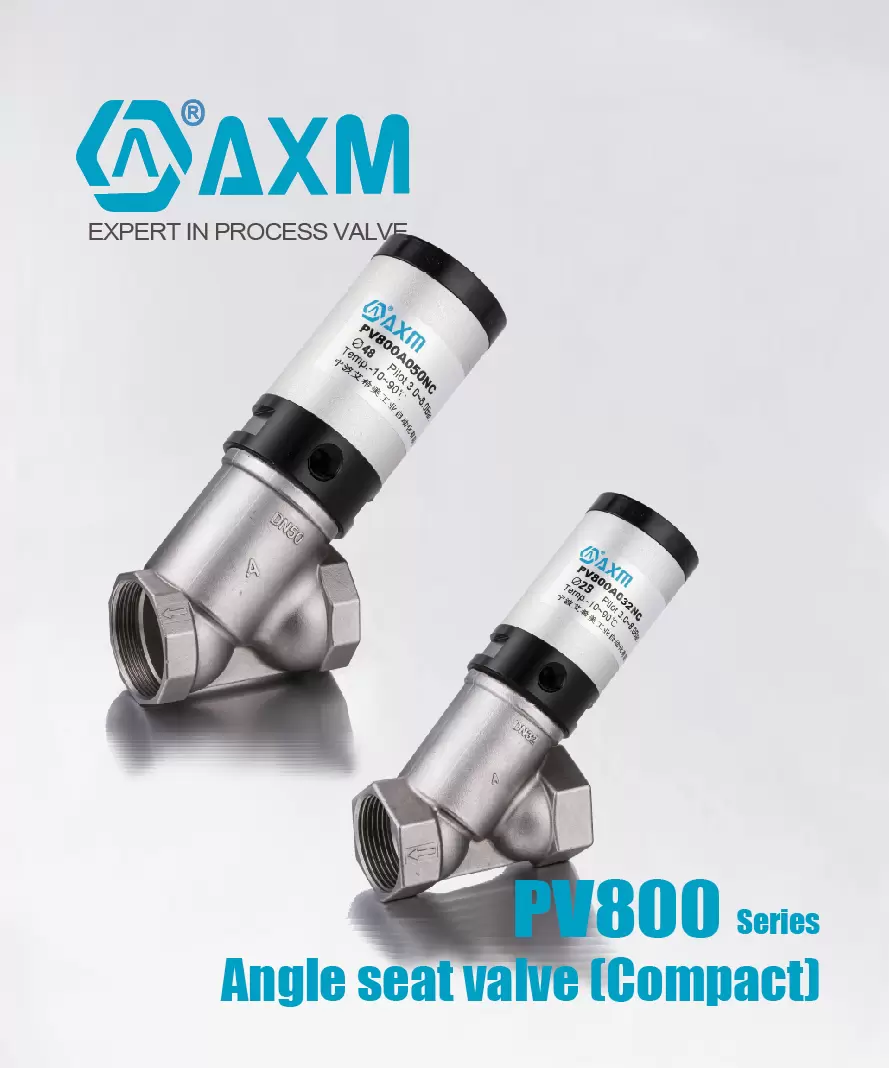

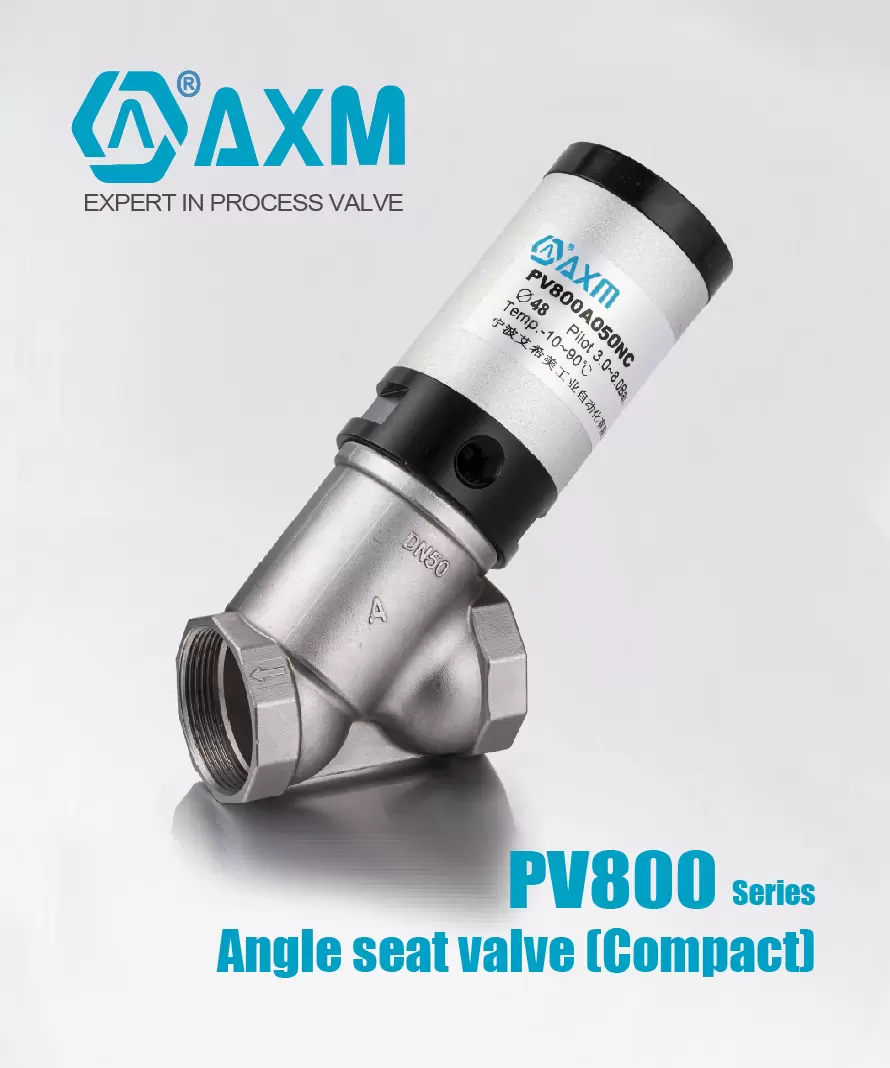

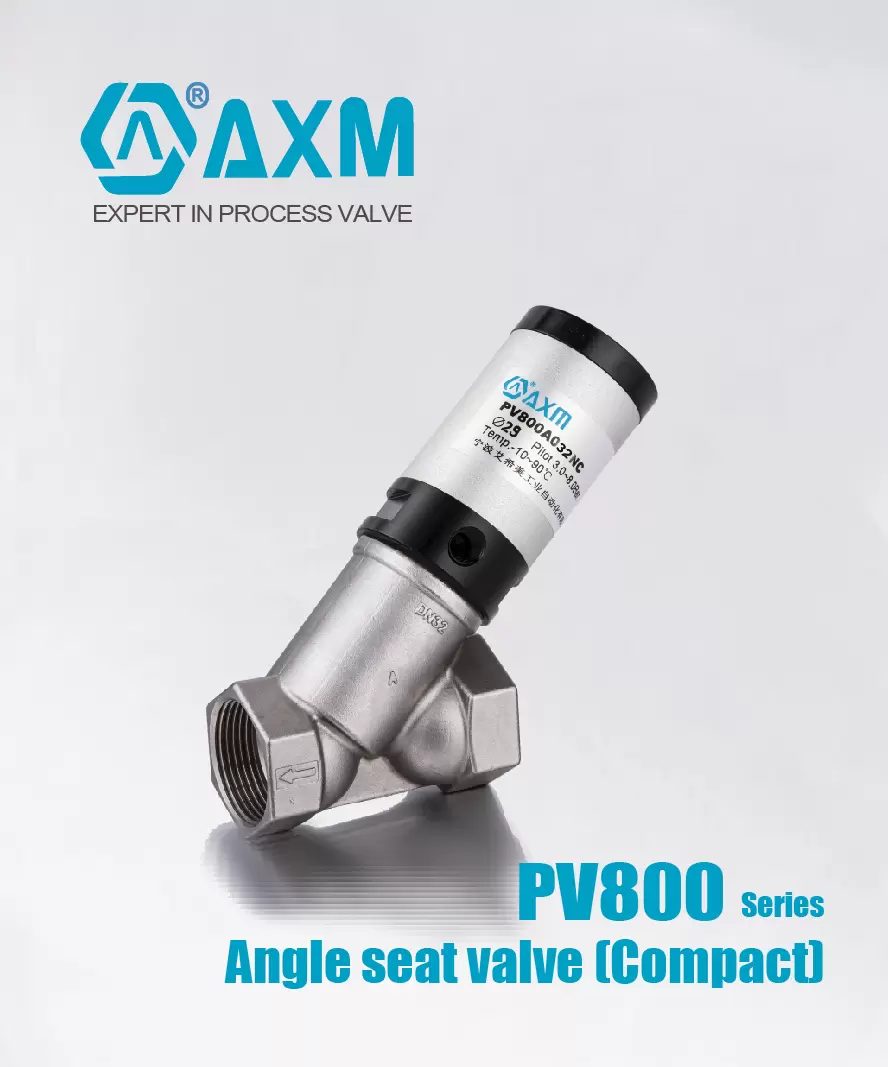

Compact Pneumatic Angle Seat Valve

* Classic design, ultra-long service life;

* Available in normally open, normally closed, and free state;

* Co-axial shut-off structure, good sealing, large flow, low flow resistance;

* Energy-saving.

* Female threaded connection, diameter DN15~DN50.

Characteristics

Orifice	DN15….50
Body materials	Cast stainless steel 304,316,316L
Actuator material	Aluminium
Seal material	PTFE(NBR,FKM,EPDM on request)
Medium	Air,water,alcohol,oils,fuel,hydraulic fuids,salt solution,alkali solutions,organic solvents,
Pressure	0~16Bar (see catalogue for details)
Viscosity	Max.6oocst(mm²/s)
Packing gland (with silicone grease)	NBR or FKM
Medium temperature	-10 to+120C with FKM seal
Ambient temperature	Aluminium -10 to 80C
Installation	As required,preferably with actuator in upright position The valves can be mounted in any position without affecting operation Pipe connections(G*)have standard combination thread according to ISO 228/t and ISO 71 Installation/maintenance instructions are included with each valve
Control medium	Neutral gases,air
Max.pilot pressure	Aluminium 10 bar
Connection	Female thread ends DN15.…DN5o
