CNPneumatic Globe Control Valve

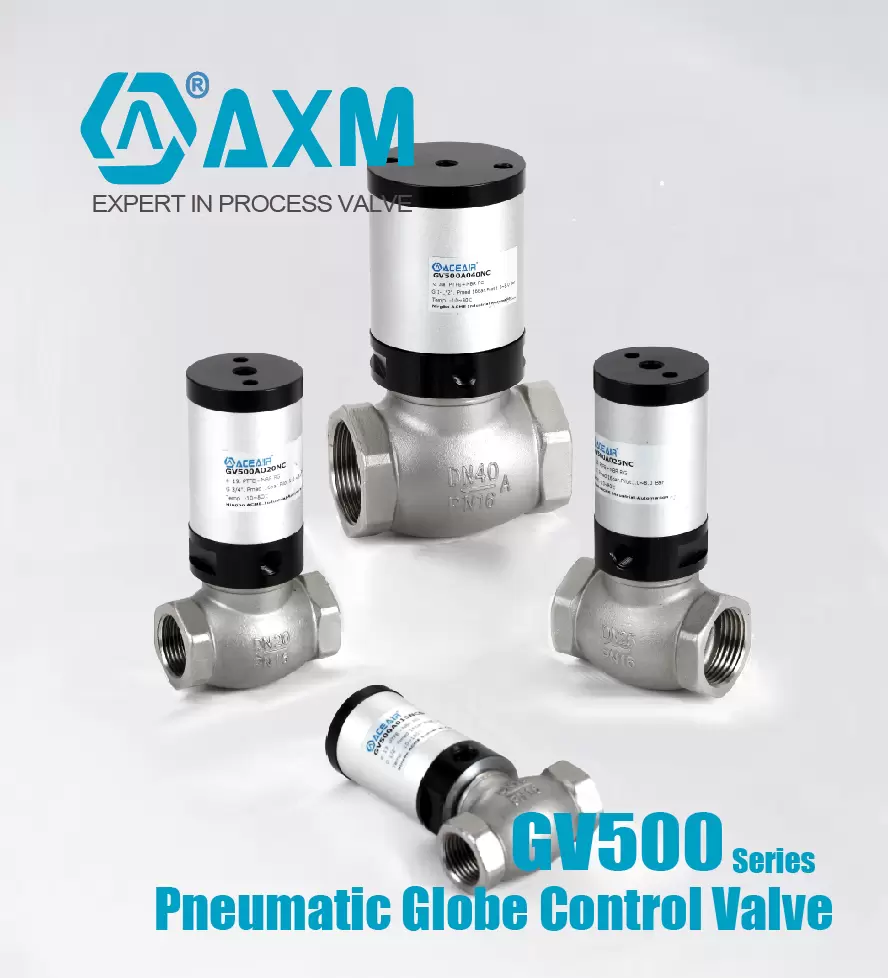

GV500 Series【Pneumatic Globe Control Valve/S.S.body】
Home > Products > Pneumatic Globe Control Valve > GV500 Series【Pneumatic Globe Control Valve/S.S.body】 > GV500 Series Pneumatic Globe Control Valve【S.S. body】
Application Field
Machinery and Automation Equipment;
Dyeing, Printing, and Purification Technology;
Industrial Gas Generation and Separation Equipment;
Product Introduction
T-type valve with flat-seat design；
Range available from 1/2”to 2-1/2”(DN15~DN65) in the double acting N.O. and double acting N.C. versions;
Control the actutaor by the external pilot gas；
Suitable for a variety of fluids: through the selection of different valve body material and sealing material, can be used in air, oil,
gasoline, vacuum and a wide range of fluids;
Valve body material stainless steel and Gunmetal.

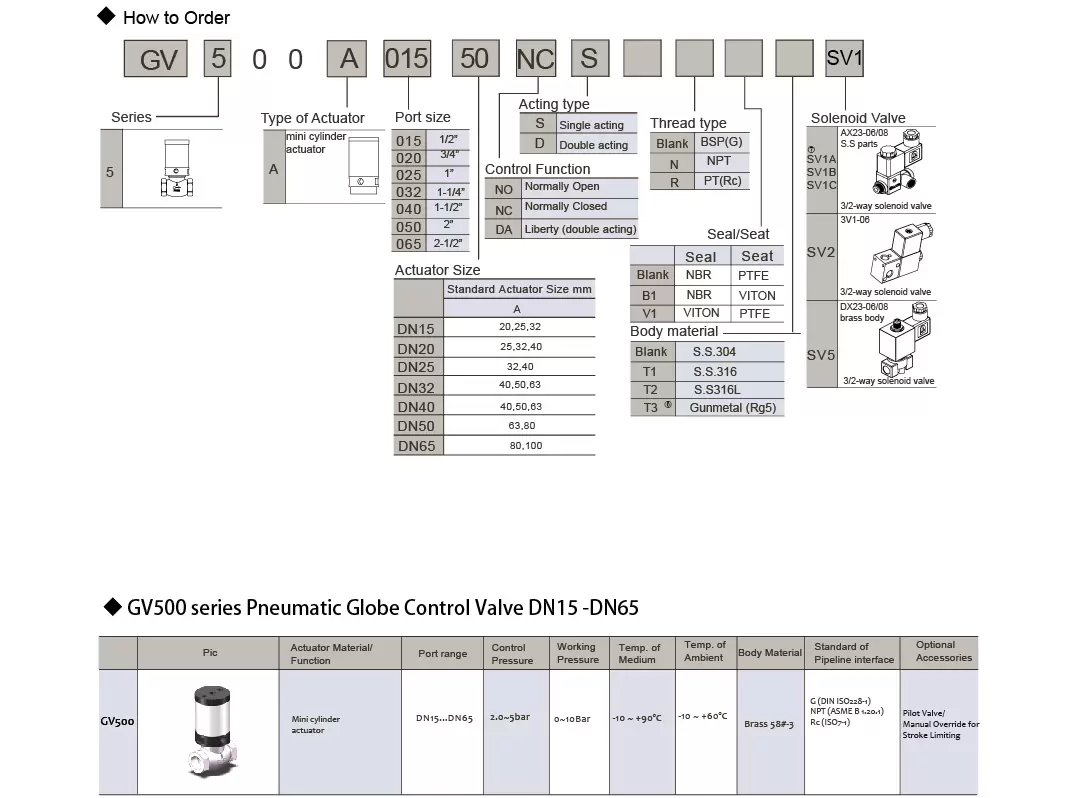

Technical Specifications
Product Features
Range available from 1/2”to 2”(DN15~DN50) in the double acting N.O. and double acting N.C. versions;
Control the actutaor by the external pilot gas；
Suitable for a variety of fluids: through the selection of different valve body material and sealing material, can be used in air, oil,gasoline, vacuum and a wide range of fluids;
Valve body material brass .
Options and Accessories
• Stroke limiter for opening
• Manual safety device
• Polit operated drain valve assembly with electronic timer (see solenoids, coils & Accessories sections)
• Vacuum applications up to 10⁻² mbar
Symbol
-
