CNPneumatic Co-axial Valve

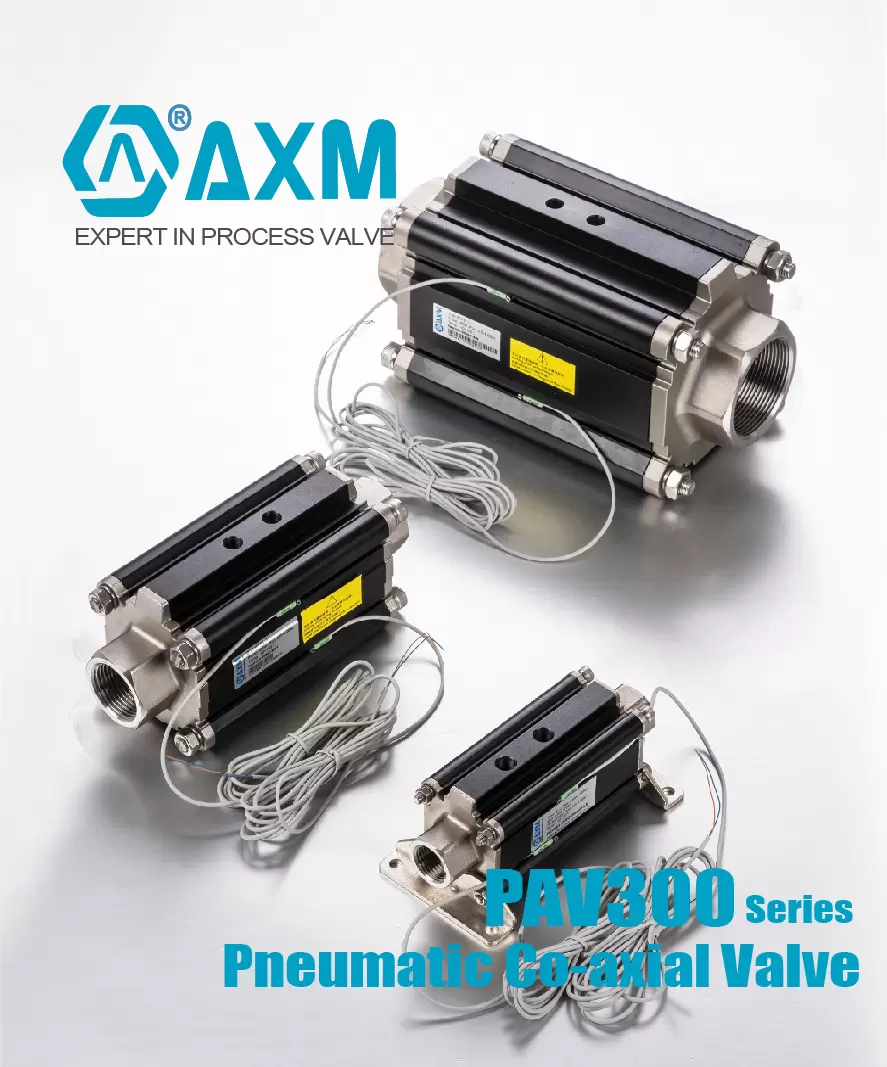

PAV300 Series Pneumatic Co-axial Valve
Home > Products > Pneumatic Co-axial Valve > PAV300 Series Pneumatic Co-axial Valve > PAV300 Series Pneumatic Co-axial Valve
Application Field
Machinery and Automation Equipment;
Dyeing, Printing, and Purification Technology;
Polystyrene Foaming and Packaging Equipment;
Industrial Steam Sterilization and Separation Equipment;
Bio-fermentation Equipment;
Industrial Gas Generation and Separation Equipment;
Product Introduction
Designed in a veatical stroke, pneumatic axial valve is integrates valve body and actuator into one piece；
Valve body material aluminum alloy profile cylinder body, equipped with a molded inductive switch slot.；
Connection female thread end；
Port size 3/8”~2”(DN10~65) is available.

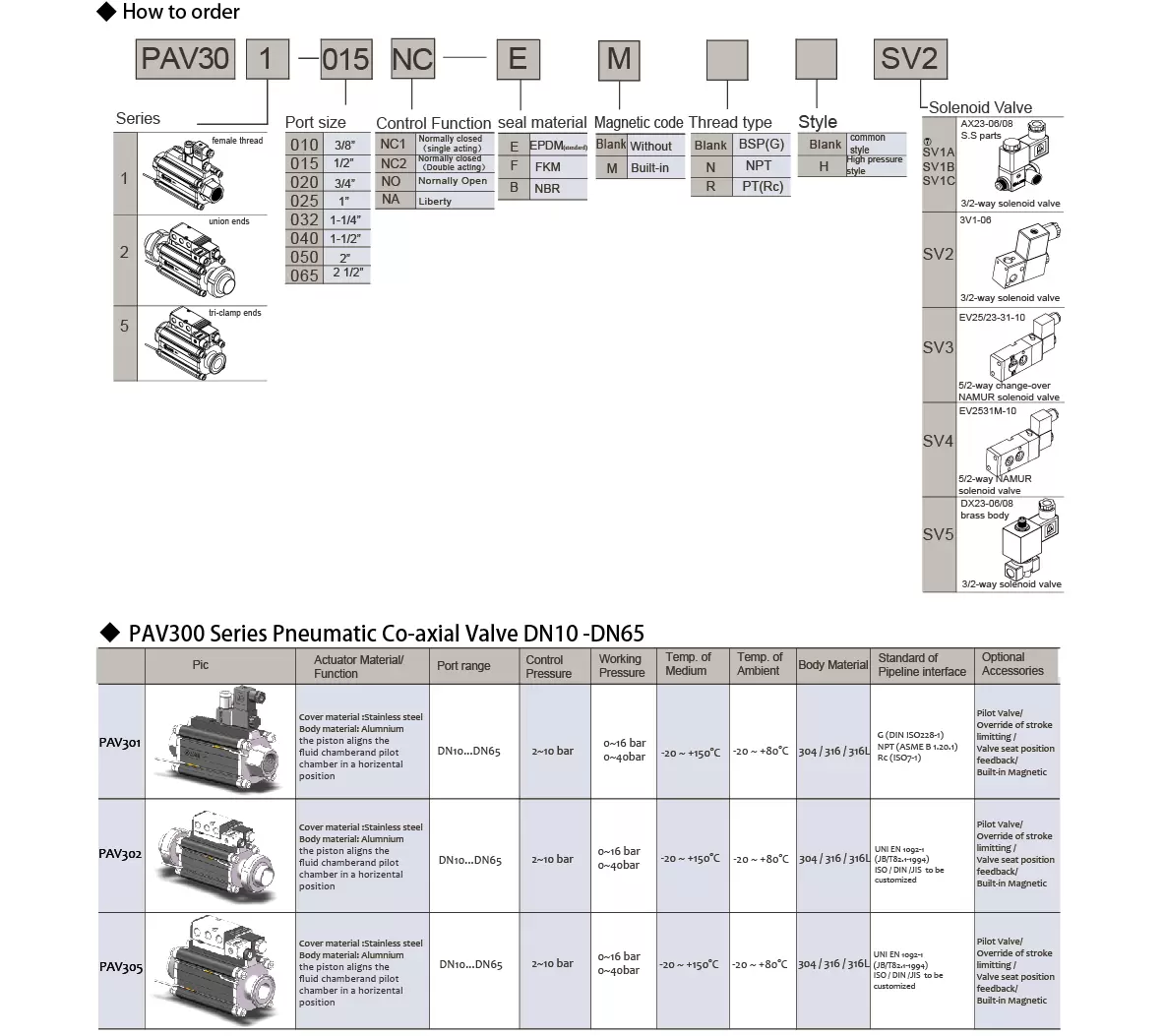

Technical Specifications
Product Features
Designed in a veatical stroke, pneumatic axial valve is integrates valve body and actuator into one piece；
Valve body material aluminum alloy profile cylinder body, equipped with a molded inductive switch slot.；
Input / output sleeve material : AISI 304,AISI 316, AISI316L ；
Compact ,long life cycle, easy to mount；
Less pressure waste, easy switch；
Well-sealed, applicable in vacuum circuit；
High pressure version available for liquid and gas application；
Connection female thread end；
Port size 3/8”~2”(DN10~65) is available.
Options and Accessories
* Two-position three-way pilot solenoid valve
* NAMUR pilot valve adapter plate
* NAMUR two-position five-way solenoid valve
* Valve position feedback switch
Symbol
-
