CNPneumatic Diaphragm Valves

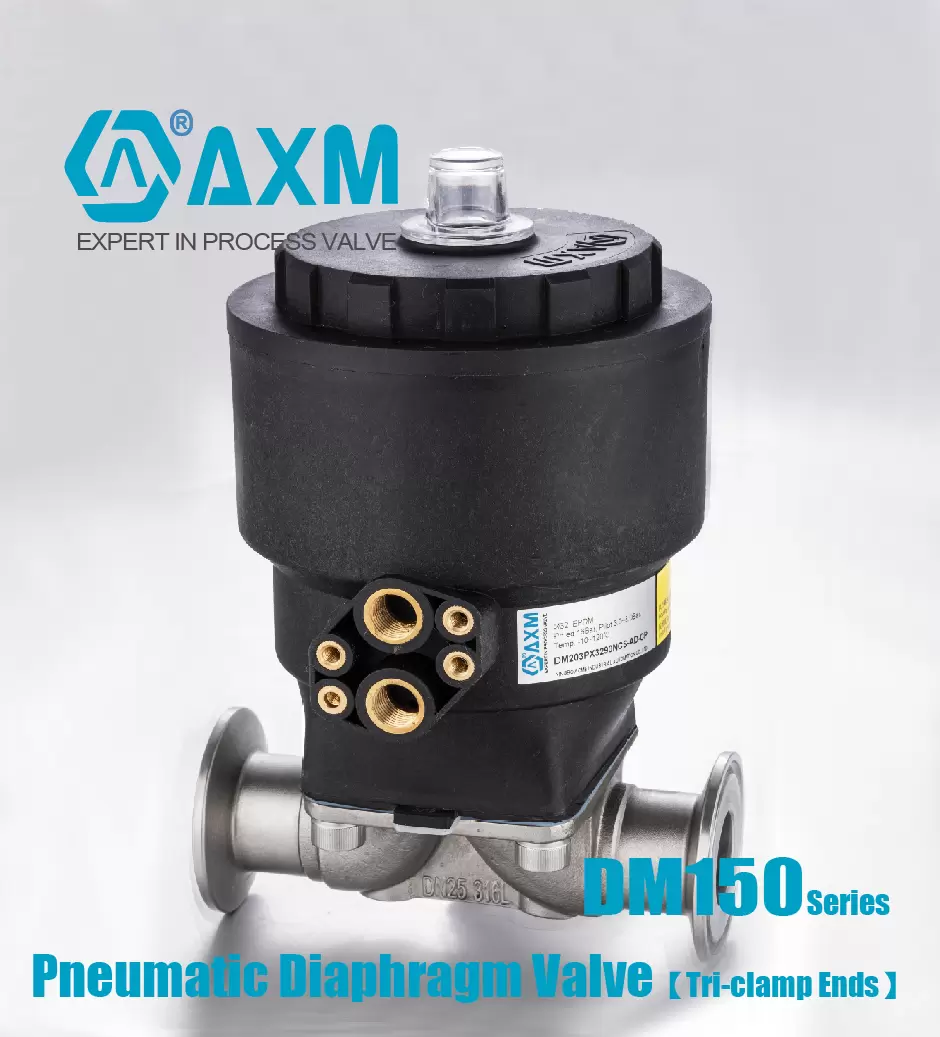

DM150 Series【Tri-clamp Ends】
Home > Products > Pneumatic Diaphragm Valves > DM150 Series【Tri-clamp Ends】 > DM150 Series Tri-clamp ends Pneumatic diaphragm valve
Application Field
Machinery and Automation Equipment;
Filling Industry;
Beverage Processing Industry;
Industrial Steam Sterilization and Separation Equipment;
Bio-fermentation Equipment;
Product Introduction
Series DM150 pneumatically operated, diaphragm valve Tri-clamp ends connection port DN04 to DN50；
Precision-cast valve body 316L/1.4404
Diaphragm materials: EPDM, PTFE/EPDM, FKM
Series DM diaphragm valve has excellent self-drainage performance, which can be maintained in both horizontal and vertical installation. The use of valve self-drainage requires the cooperation of pipeline designers and users；
Technical Specifications
Product Features
Series DM150 pneumatically operated, diaphragm valve Tri-clamp ends connection port DN04 to DN50；
Actuators available: PX, PR, AE, S, and P series
Precision-cast valve body 316L/1.4404
Diaphragm materials: EPDM, PTFE/EPDM, FKM
Series DM diaphragm valve has excellent self-drainage performance, which can be maintained in both horizontal and vertical installation. The use of valve self-drainage requires the cooperation of pipeline designers and users；
Options and Accessories
• Signaling box or compact signaling unit
• Stroke limiter for opening
• Manual safety device
• Positioner for proportional control
• Optical position indicator on 40, 50, 63, 90, 110mm.
• NAMUR port mounting pilot is optional；
• NET-INOX passivation treatment on stainless steel body valve
• ATEX 94/9/EC versions for potentially explosive atmospheres
• Polit operated drain valve assembly with electronic timer (see solenoids, coils & Accessories sections)
• Male thread ,Weld end, clamp and flange end connections are available on request
