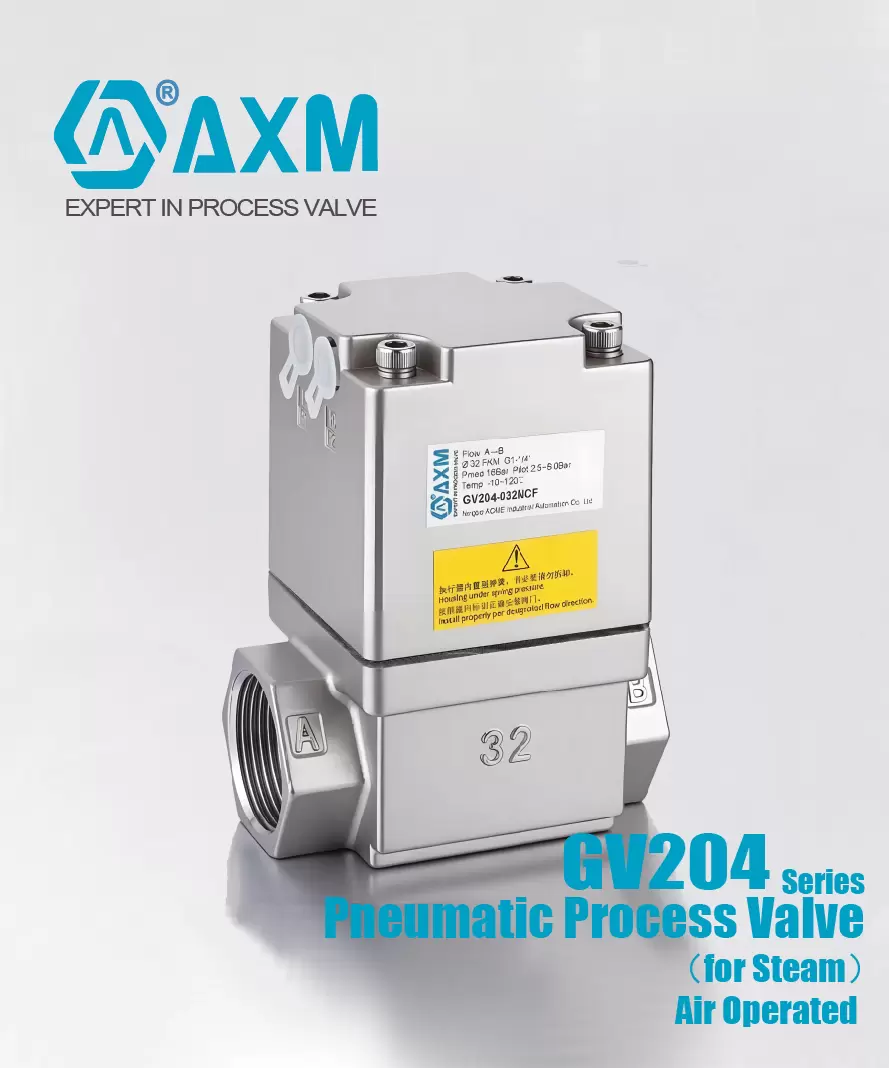

CNGV200 Series【Pneumatic Process Valve】
GV204 Series【For Steam】
Home > Products > Pneumatic Globe Control Valve > GV200 Series【Pneumatic Process Valve】 > GV204 Series【For Steam】 > GV204 Series Pneumatic Process Valve/ Air Operated 【For Steam】
Application Field
Machinery and Automation Equipment;
Industrial Steam Sterilization and Separation Equipment;
Product Introduction
T-type valve with flat-seat ；
Range available from 1/8”to 2”(DN06~DN65) in the double acting versions, spring return N.C.from above and below the seat, spring return N.O. from below the seat;
Control the actutaor by the external pilot gas；
Suitable for a variety of fluids: through the selection of different valve body material and sealing material, can be used in air, water, oil, gasoline, vacuum and a wide range of fluids;
Valve body material stainless steel AISI304,AISI316 ,AISI316L ,casting iron and Gunmetal.
Rich variety of expansion varieties to choose: Process valve(2 Port Valve for Compressed Air and Air-hydro Circuit Control)、Process valve(2 Port Valve for Flow control)、Coolant Valve (2 Port Valve for Coolant)、Steam Valve(2 Port Valve for Steam);
Pneumatically operated and External pilot solenoid is optional.
Technical Specifications
Product Features
Range available from 1/8”to 2”(DN06~DN50) in the double acting versions, spring return N.C.from above and below the seat, spring return N.O. from below the seat;
Control the actutaor by the external pilot gas；
Suitable for a variety of fluids: through the selection of different valve body material and sealing material, can be used in air, water, oil, gasoline, vacuum and a wide range of fluids;
Valve body material stainless steel AISI304,AISI316 ,AISI316L ,casting iron and Gunmetal.
Process valve(2 Port Valve for Flow Steam)/ Air Operated type;
Pneumatically operated and External pilot solenoid is optional.
Options and Accessories
• Signaling box or compact signaling unit
• Positioner for proportional control
• NET-INOX passivation treatment on stainless steel body valve
• ATEX 94/9/EC versions for potentially explosive atmospheres
• Polit operated drain valve assembly with electronic timer (see solenoids, coils & Accessories sections)
• Male thread ,Weld end, clamp and flange end connections are available on request
• Vacuum applications up to 10⁻² mbar

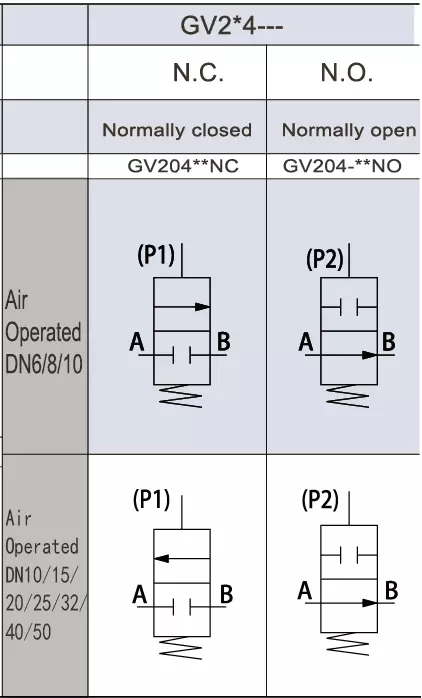

Symbol
-
