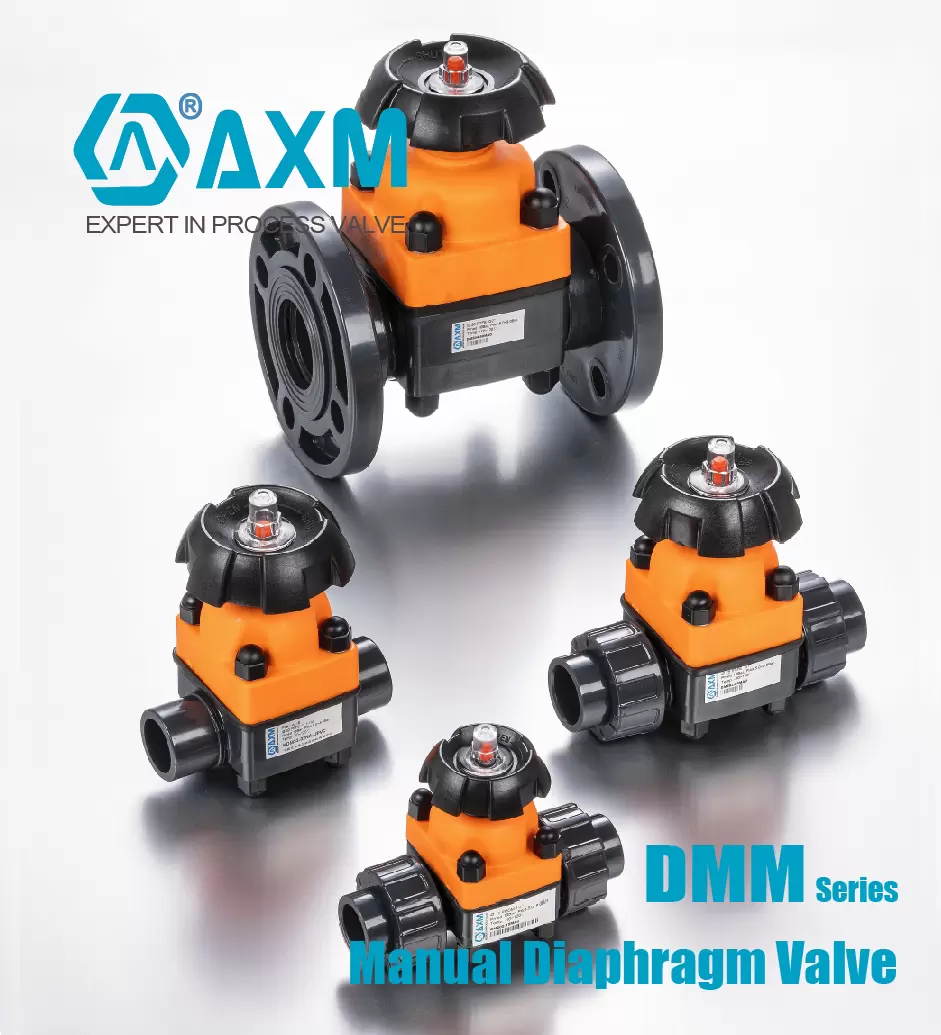

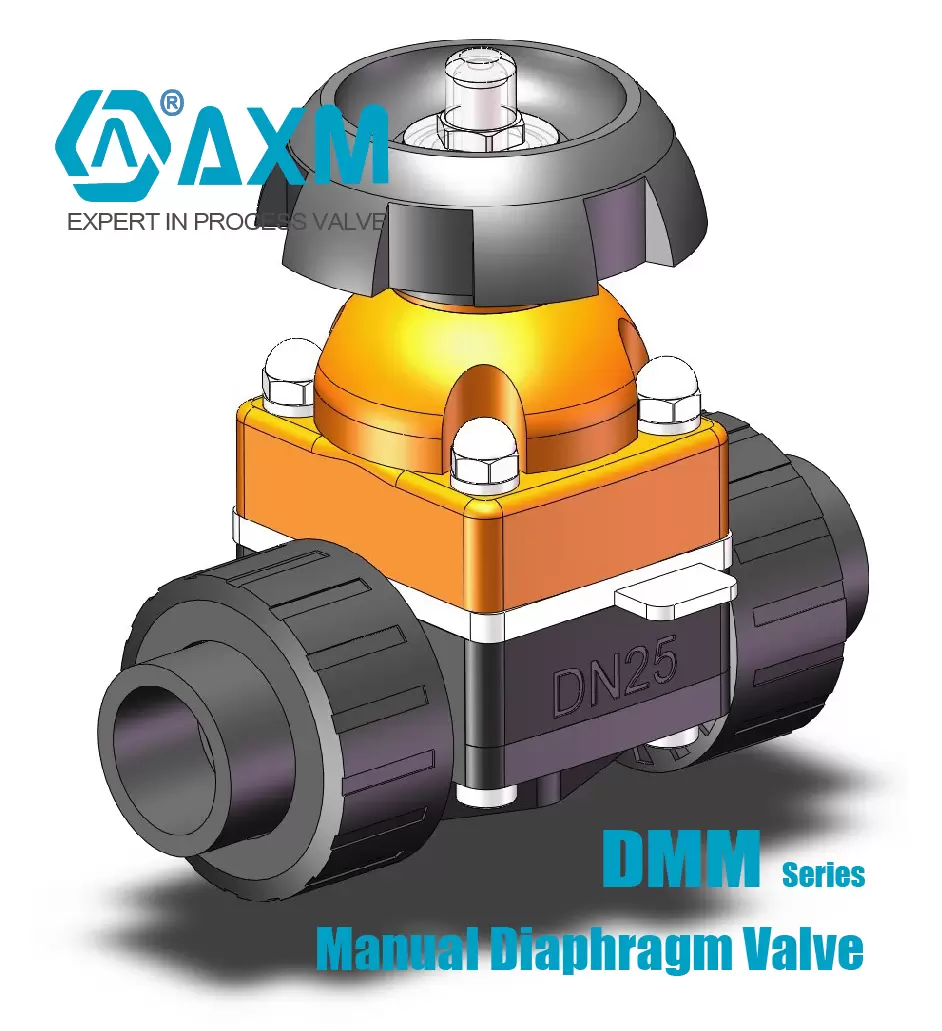

CNManual Diaphragm Valve
DMM202 Series【Union Ends/ Plastic body】
Home > Products > Manual Diaphragm Valve > DMM202 Series【Union Ends/ Plastic body】 > DMM202 Series Union ends Manual Diaphragm Valve
Application Field
Machinery and Automation Equipment;
Filling Industry;
Beverage Processing Industry;
Bio-fermentation Equipment;
Product Introduction
Series DMM202 manual operated, diaphragm valve union ends connection port DN10 to DN100；
Valve body materials: UPVC, CPVC, PVDF, PPH, etc.
Diaphragm materials: EPDM, PTFE/EPDM, FKM
Series DMM diaphragm valve has excellent self-drainage performance, which can be maintained in both horizontal and vertical installation. The use of valve self-drainage requires the cooperation of pipeline designers and users；

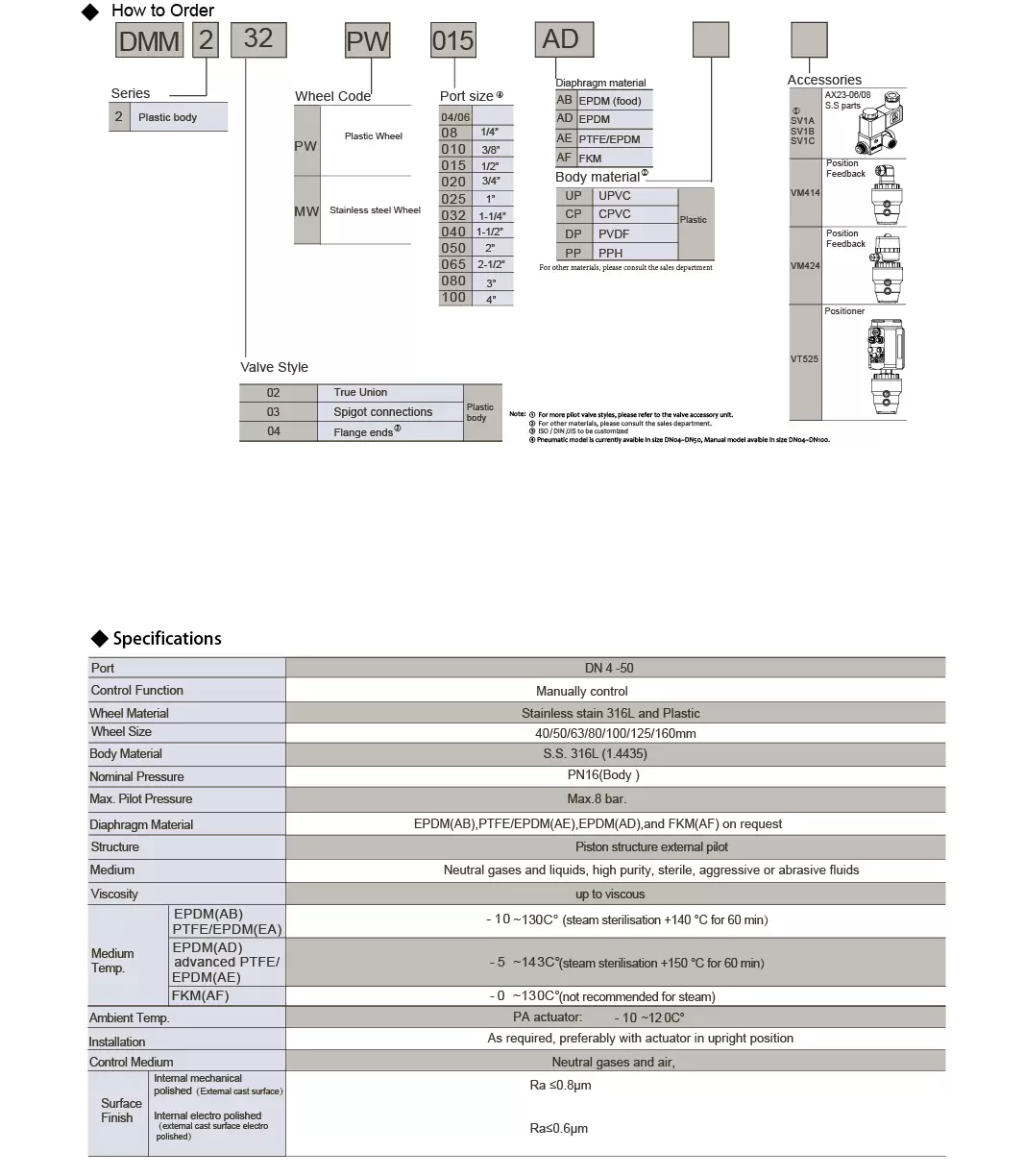

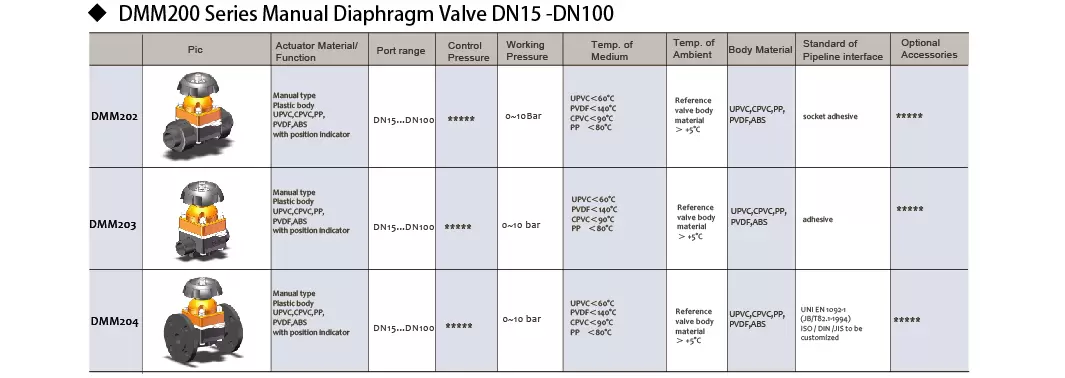

Technical Specifications
Product Features
Series DMM202 manually operated, diaphragm valve union ends connection port DN10 to DN100；
Valve body materials: UPVC, CPVC, PVDF, PPH, etc.
Diaphragm materials: EPDM, PTFE/EPDM, FKM
Series DMM diaphragm valve has excellent self-drainage performance, which can be maintained in both horizontal and vertical installation. The use of valve self-drainage requires the cooperation of pipeline designers and users；
Options and Accessories
• Signaling box or compact signaling unit
• NET-INOX passivation treatment on stainless steel body valve
Symbol
-
