Product Introduction

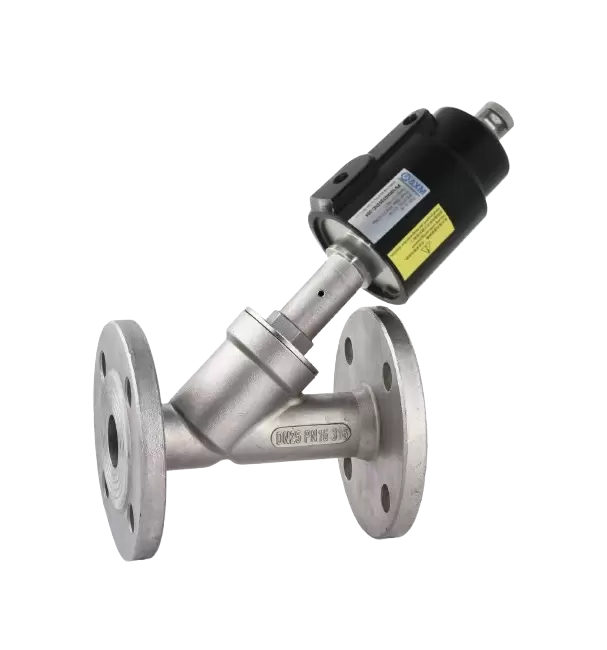

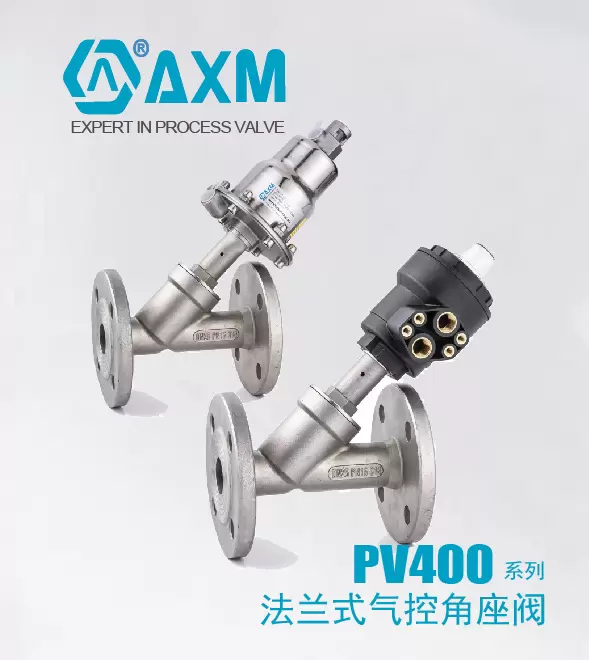

2/2-way Angle Seat Valve, Pneumatically Operated, for medium up to +180°C; Flange ends connection, DN15–100.

A Series Actuator. Aluminum casting material .

High flow rate, low flow resistance, and waterproof hammer structure;

Long life cycle;

NC. and NO. universal actuators with modular universal accessories program up to control heads;

Deliverable with flow direction below or above seat;

Simple conversion of the circuit function.

Technical Specifications

Connection Port Diameter	DN15…DN65
Valve Body Material	Precision-cast 304, 316, 316L, Tin Bronze Rg5
Actuator Material	PA (PA + Glass Fiber) Stainless Steel 304 Aluminum Alloy
Sealing Material	PTFE (NBR, FKM, EPDM available upon request)
Flow Medium	Air, water, alcohol, oil, chemicals, hydraulic fluid, saline solutions, alkaline solutions, organic solvents, steam, etc.
Pressure	0–16 Bar (180°C Steam: 0–10 Bar). Please refer to the product catalog for details; model selection should be based on the valve nominal diameter.
Viscosity	Max.6oocst(mm²/s)
Packing Section (with Silicone Grease)	PTFE V-Packing with Spring-Energized Compensation
Medium Temperature	-10 to +180C (PTFE Valve Seat Seal)
Ambient Temperature	PA Nylon: -10~60°C Stainless Steel: -10~60°C Aluminum Alloy: -10~60°C
Installation	Installation may be performed as required; however, it is recommended that the actuator be positioned facing upwards. The valve may be installed in any orientation, provided that valve operation remains unimpeded. For internally threaded models (C*), installation should be performed in accordance with standards ISO 228/1 and ISO 7/1. Installation and maintenance instructions for the valve are included within the product packaging for each unit.
Control Medium	Neutral gas, air
Max. Pilot Pressure	PA Nylon Actuator Φ32...80 PA Nylon Actuator Φ100...125 Stainless Steel Aluminum Alloy	10 bar 8 bar 10 bar 10 bar
Connection Type	Internal Thread External Thread Union Type Slip-on Weld Socket Weld Flange Type Quick-Connect Tin Bronze Internal Thread	DN08...DN80 DN15...DN65 DN15...DN65 DN15....DN65 DN15...DN65 DN15...DN100 DN15...DN65 DN13...DN65

Product Features

The connection between the valve seat and the valve spindle adopts a floating design structure, which ensures the sealing of the valve disc and the valve port.；

A series actuators are suitable for high pressure and high temperature operating environments.；

Wide range of piston-type operators ( 40- 50 - 63 - 80 mm dia.) rotatable through 360°, for maximum performance at different minimum pilot pressures ;

Anti-waterhammer design (fluid entry under the disc)
