CNManual Diaphragm Valve
DMM130 Series【Weld ends】
Home > Products > Manual Diaphragm Valve > DMM130 Series【Weld ends】 > DMM130 Series Weld ends Manual diaphragm valve
Application Field
Machinery and Automation Equipment;
Dyeing, Printing, and Purification Technology;
Beverage Processing Industry;
Bio-fermentation Equipment;
Product Introduction
Series DMM130 manual operated, diaphragm valve weld ends connection port DN04 to DN100；
Precision-cast valve body 316L/1.4404
Diaphragm materials: EPDM, PTFE/EPDM, FKM
Series DMM diaphragm valve has excellent self-drainage performance, which can be maintained in both horizontal and vertical installation. The use of valve self-drainage requires the cooperation of pipeline designers and users；

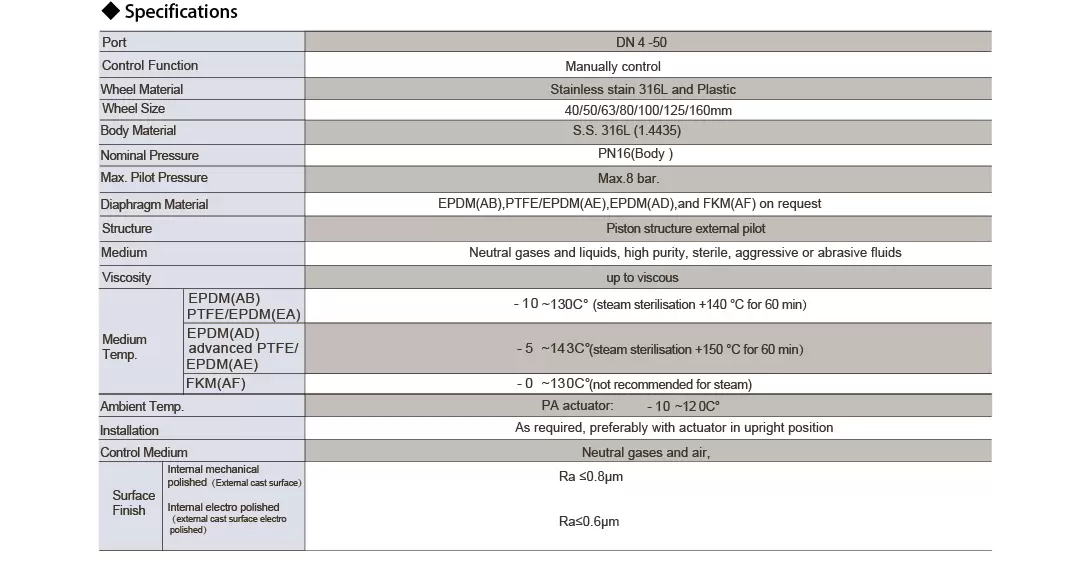

Technical Specifications
Product Features
Series DMM130 manually operated, diaphragm valve weld ends connection port DN04 to DN100；
Precision-cast valve body 316L/1.4404
Diaphragm materials: EPDM, PTFE/EPDM, FKM
Series DMM diaphragm valve has excellent self-drainage performance, which can be maintained in both horizontal and vertical installation. The use of valve self-drainage requires the cooperation of pipeline designers and users；
Options and Accessories
• Signaling box or compact signaling unit
• NET-INOX passivation treatment on stainless steel body valve
Symbol
-
