Application Field

Petrochemical Industry;

Machinery and Automation Equipment;

Filling Industry;

Dyeing, Printing, and Purification Technology;

Beverage Processing Industry;

Polystyrene Foaming and Packaging Equipment;

Heat Exchange System;

Industrial Steam Sterilization and Separation Equipment;

Bio-fermentation Equipment;

Industrial Gas Generation and Separation Equipment;

Request a Quote

Online Consultation

0086-574-88657748

Product Introduction

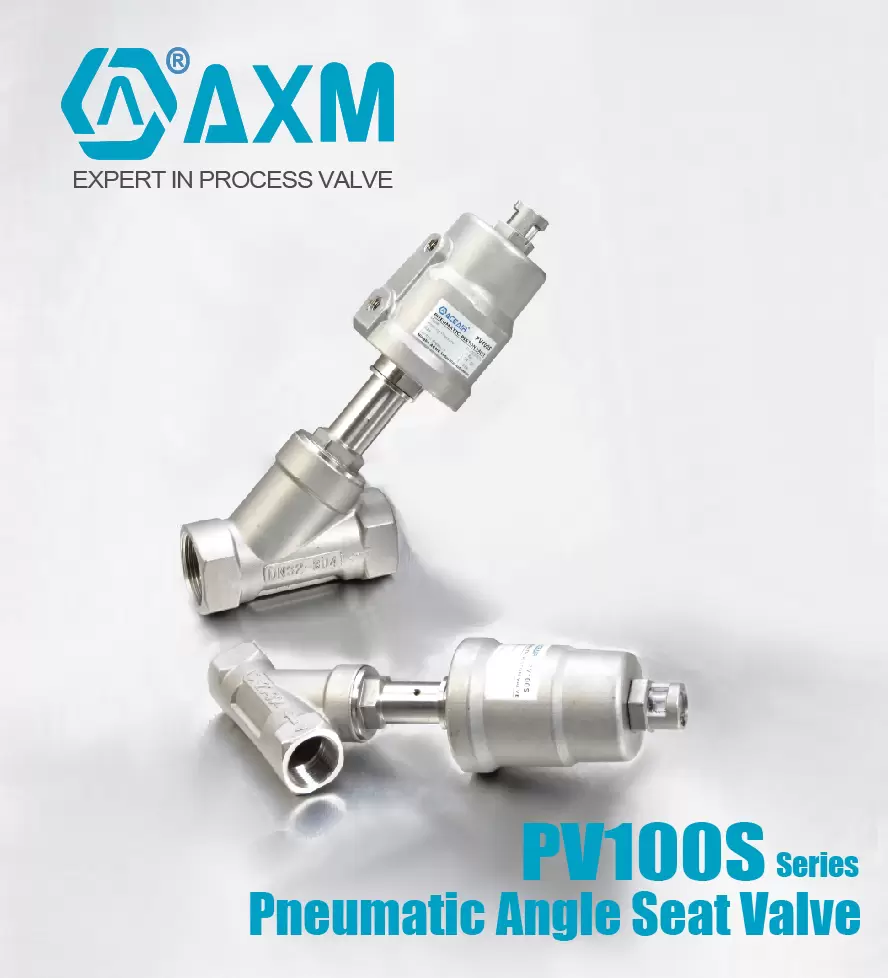

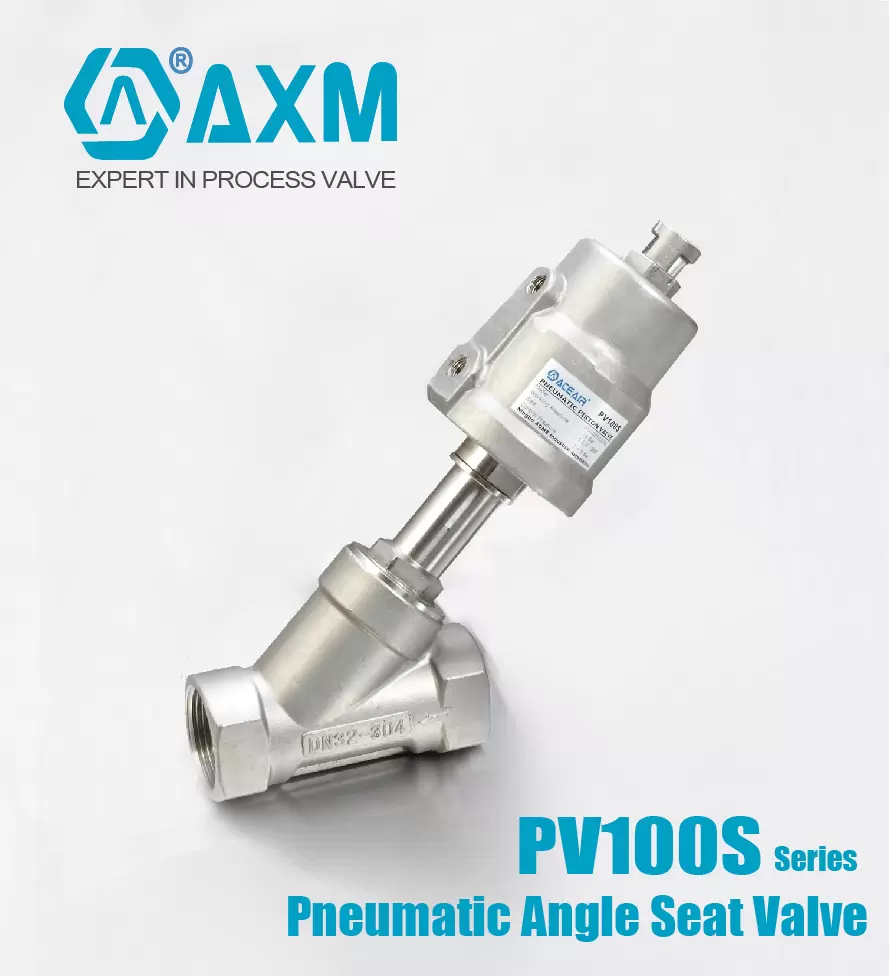

2/2-way Angle Seat Valve, Pneumatically Operated, for medium up to +180°C; threaded port connection, DN08–80.

S Series Actuator. S.S.304/316 material Maximum temperature: +180°C.

High flow rate, low flow resistance, and waterproof hammer structure;

Long life cycle;

NC. and NO. universal actuators with modular universal accessories program up to control heads;

Deliverable with flow direction below or above seat;

Simple conversion of the circuit function.

Technical Specifications

Connection Port Diameter	DN08…80
Valve Body Material	Precision Casting 304,316,316L
Actuator Material	Stainless Steel 304
Sealing Material	PTFE(NBR,FKM,EPDM Based on Requirements)
Circulating Medium	Air, water, alcohol, oil, chemical agents, hydraulic fluid, saline solutions, alkaline solutions, organic solvents, steam, etc.
Pressure	0–16 Bar (180°C Steam; Pressure: 0–10 Bar). Please refer to the product brochure for specific details and select the appropriate model based on the valve nominal diameter.
Viscosity	Max.6oocst(mm²/s)
Packing Section (with Silicone Grease)	PTFE V-Packing with Spring-Energized Compensation
Medium Temperature	-10 to +180℃ (PTFE Valve Seat Seal)
Ambient Temperature	Stainless Steel: -10°C to 80°C
Installation	Installation may be performed as required; however, it is recommended that the actuator be positioned facing upwards. The valve may be installed in any orientation, provided that valve operation remains unimpeded. For internally threaded models (C*), installation should be performed in accordance with standards ISO 228/1 and ISO 7/1. Installation and maintenance instructions for the valve are included within the product packaging for each unit.
Control Medium	Neutral Gas, Air
Max. Pilot Pressure	Stainless Steel	10 bar
Connection Type	Internal Thread External Thread Union Type Slip-on Weld Socket Weld Flange Type Quick-Connect Tin Bronze Internal Thread	DN08...DN80 DN15...DN65 DN15...DN65 DN15....DN65 DN15...DN65 DN15...DN100 DN15...DN65 DN13...DN65

Product Features

The inner hole of the actuator, after being ground through car milling, is smoother, facilitating piston movement and resulting in a longer life cycle

The connection between the valve seat and the valve spindle adopts a floating design structure, which ensures the sealing of the valve disc and the valve port; ；

The S series actuators are suitable for high-pressure and high-temperature operating environments;；

Wide range of piston-type operators (32 - 40 - 50- 63 - 90 - 125- 160 mm dia.) rotatablethrough 360°, for maximum performance at different minimum pilot pressures ;

Anti-waterhammer design (fluid entry under the disc).
