CNPneumatic Drain Valve

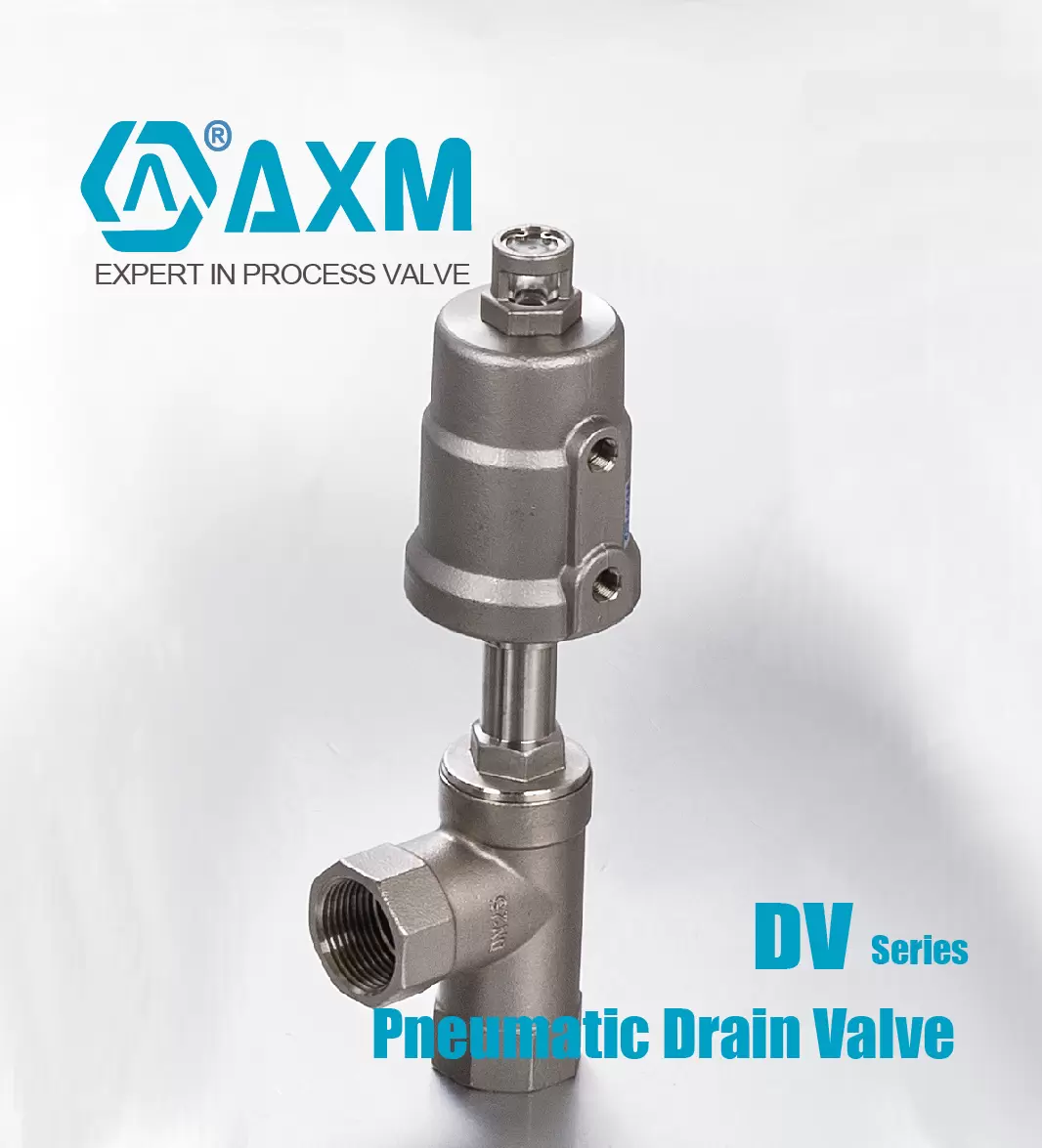

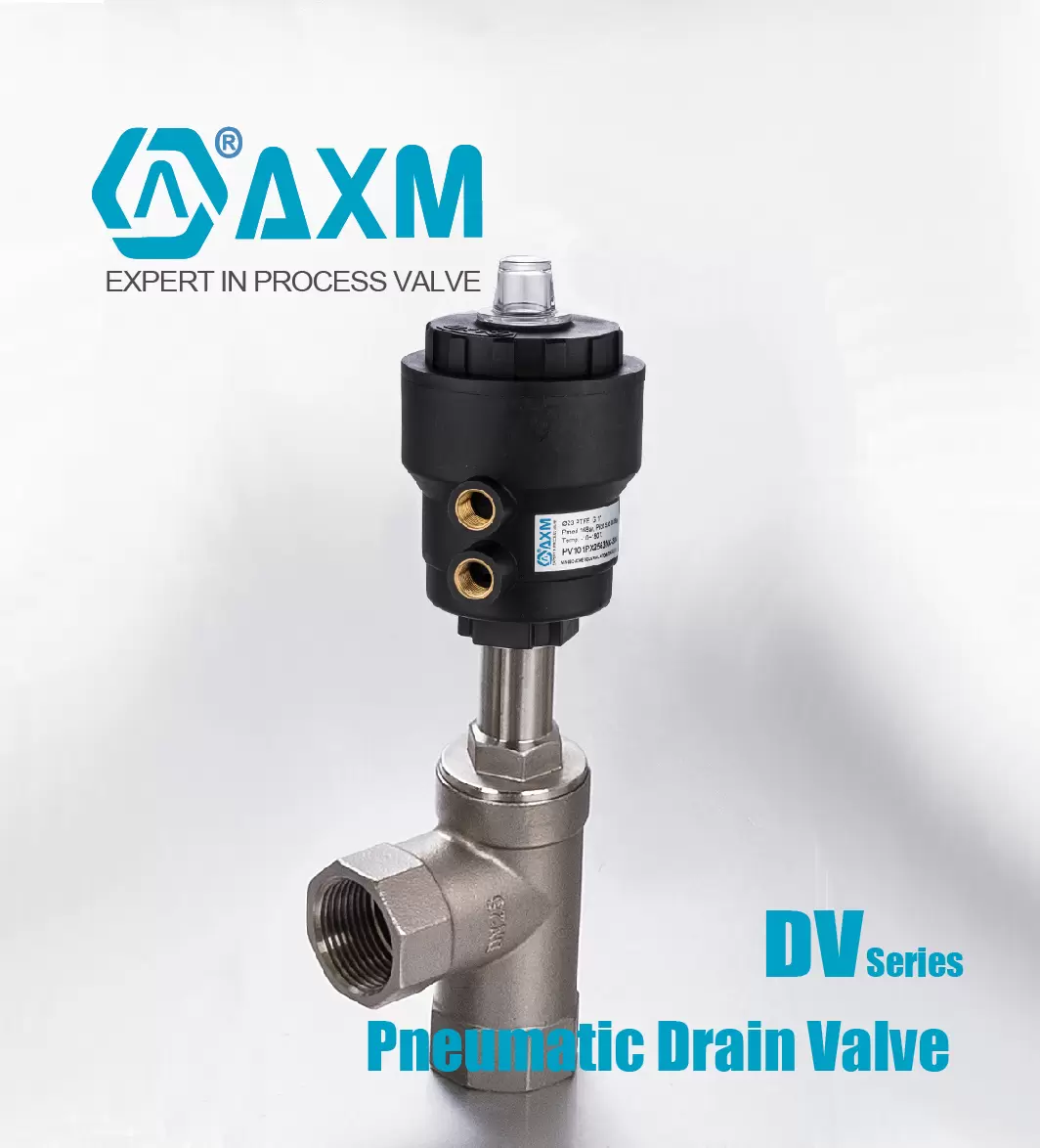

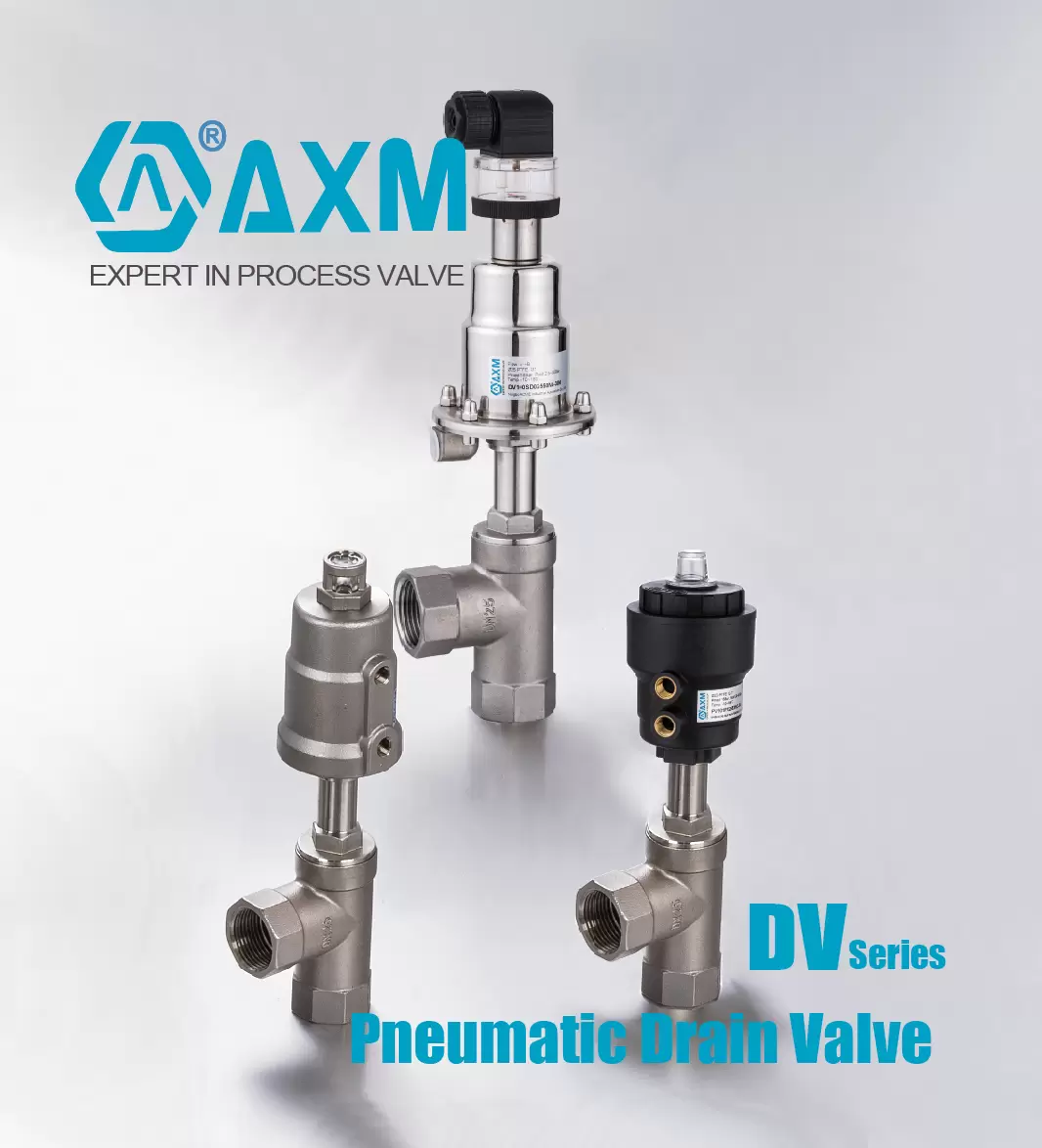

DV100 series Pneumatic Drain Valve
Home > Products > Pneumatic Drain Valve > DV100 series Pneumatic Drain Valve > DV100 Series Pneumatic Drain Valve
Application Field
Machinery and Automation Equipment;
Filling Industry;
Dyeing, Printing, and Purification Technology;
Beverage Processing Industry;
Polystyrene Foaming and Packaging Equipment;
Heat Exchange System;
Industrial Steam Sterilization and Separation Equipment;
Bio-fermentation Equipment;
Industrial Gas Generation and Separation Equipment;
Product Introduction
2/2-way Drain Valve, Pneumatically Operated, for medium up to +180°C; threaded port connection, DN15–50.
Maximum temperature: +180°C.
High flow rate, low flow resistance, and waterproof hammer structure;
Long life cycle;
NC. and NO. universal actuators with modular universal accessories program up to control heads;
Deliverable with flow direction below or above seat;
Simple conversion of the circuit function.

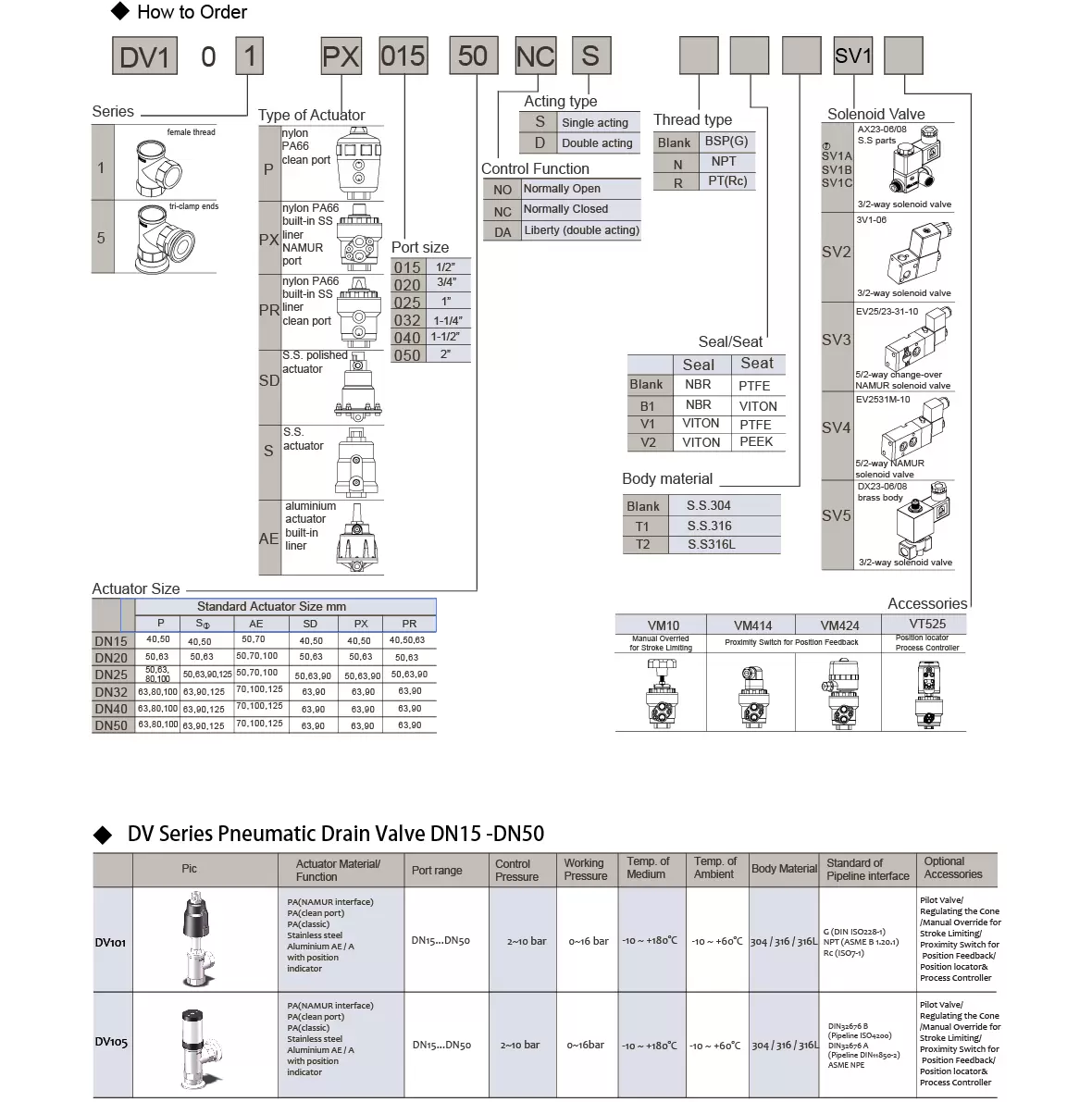

Technical Specifications
Product Features
Maximum temperature: +180°C.
High flow rate, low flow resistance, and waterproof hammer structure;
Long life cycle;
NC. and NO. universal actuators with modular universal accessories program up to control heads;
Deliverable with flow direction below or above seat;
Simple conversion of the circuit function.
Options and Accessories
• Signaling box or compact signaling unit
• Stroke limiter for opening
• Manual safety device
• Positioner for proportional control
• Optical position indicator on 32, 40, 50, 63, 90, 110mm.
• NAMUR port mounting pilot is optional,except to 32mm
• NET-INOX passivation treatment on stainless steel body valve
• ATEX 94/9/EC versions for potentially explosive atmospheres
• Polit operated drain valve assembly with electronic timer (see solenoids, coils & Accessories sections)
• Male thread ,Weld end, clamp and flange end connections are available on request
• Vacuum applications up to 10⁻² mbar
Symbol
-
